Chapter 4

Removing and Replacing Components

Removing and Replacing the Front Bezel

The server does not have to be turned off to remove the front bezel. Figure 4-3 shows how to remove the front

bezel.

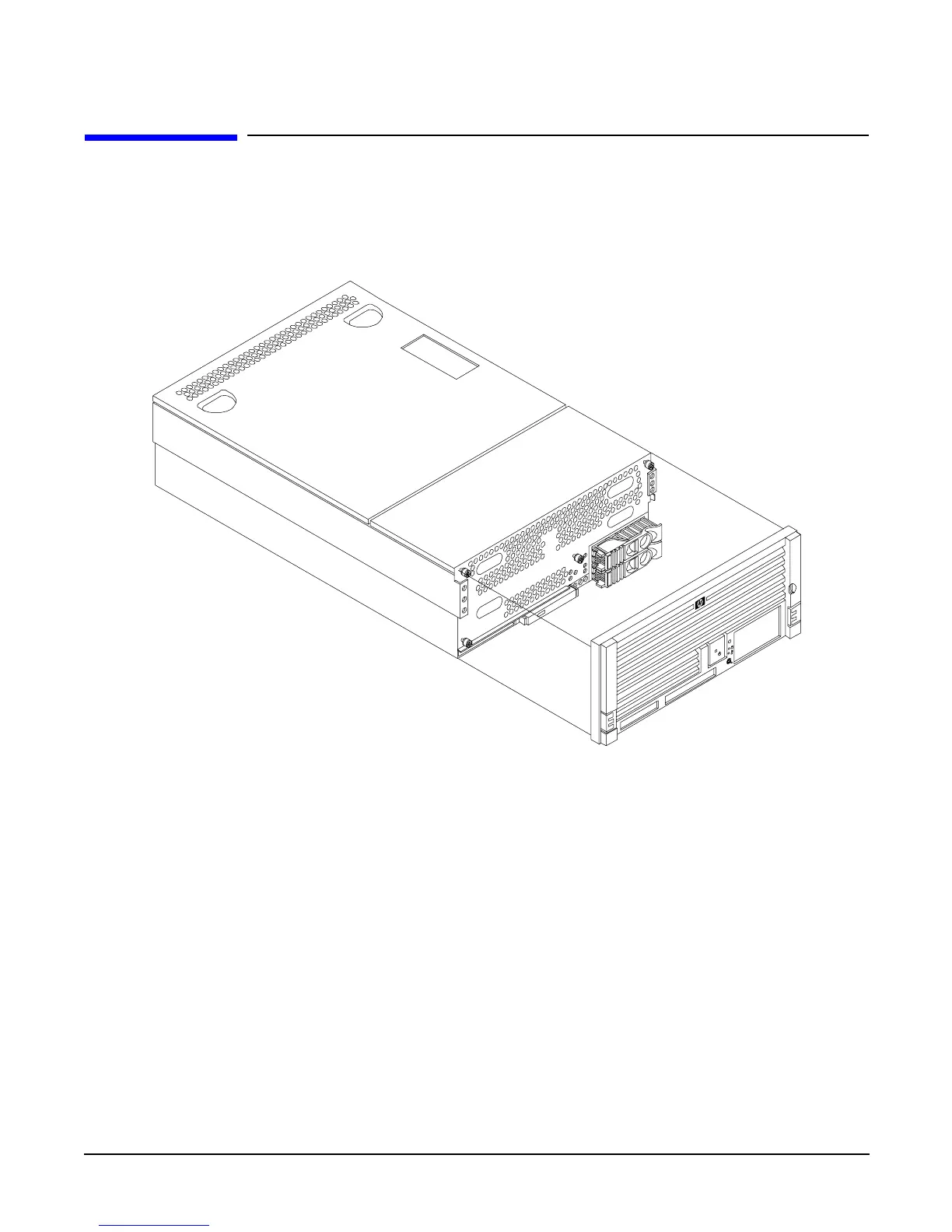

Figure 4-3 Removing and Replacing the Front Bezel

Removing the Front Bezel

To remove the front bezel, perform the following step:

Step 1. Grasp the front bezel at the outer edges and pull straight out.

Replacing the Front Bezel

To replace the front bezel, perform the following step:

Step 1. Push the front bezel straight into the chassis until it snaps into place.
