Controls, Ports, and LEDs
Rear Panel Controls, Ports, and LEDs
Chapter 2
28
DVD/DVD-R/DVD-RW Drives
The HP server is delivered with one DVD drive (DVD-R and DVD-RW optional). Each of these devices has one
activity LED. Figure 2-5 shows the location of the DVD LEDs.

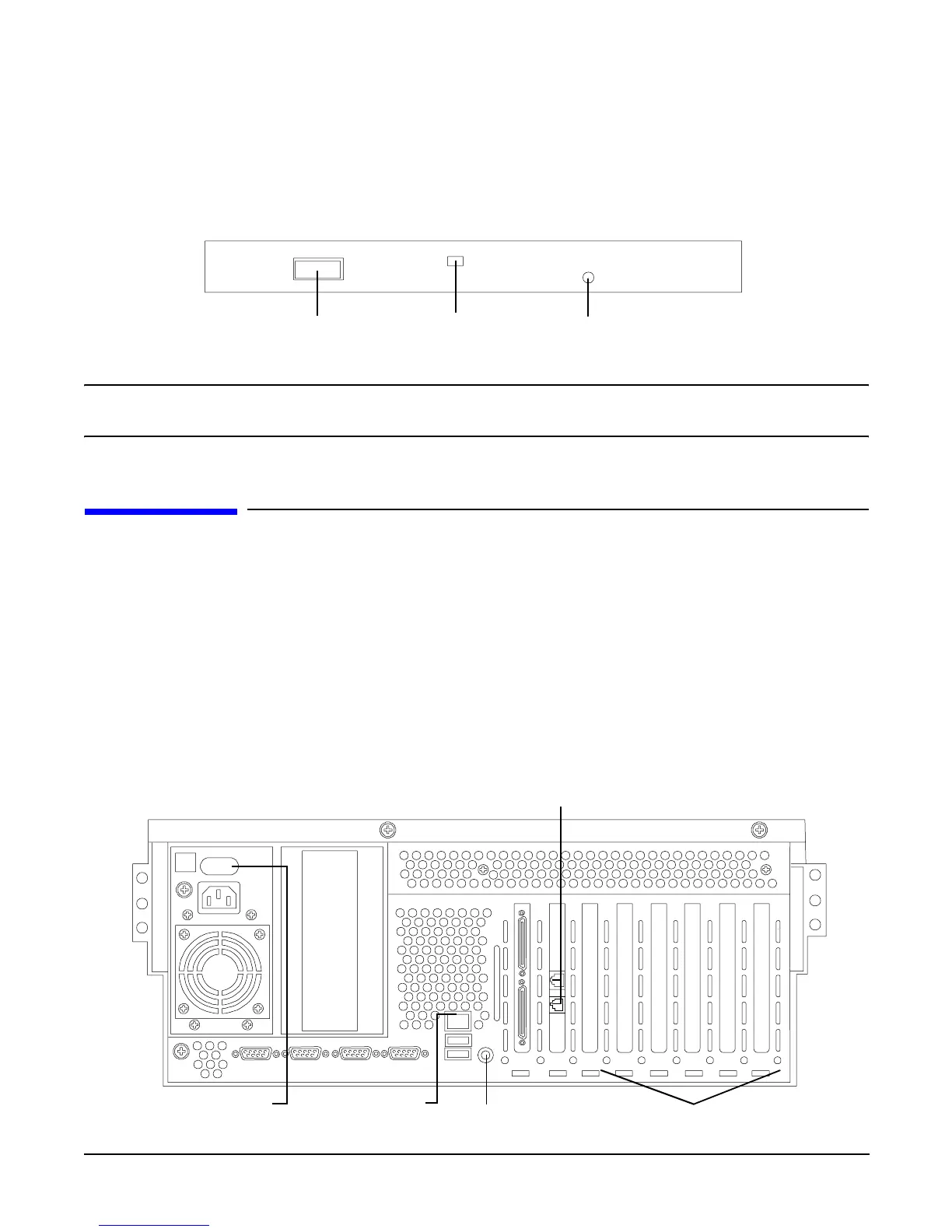

Figure 2-5 DVD–ROM Drive
NOTE For troubleshooting information regarding the DVD LEDs, see “DVD/DVD-R/DVD-RW Drive
LED Indicators” on page 118.
Rear Panel Controls, Ports, and LEDs
The HP server rear panel includes communication ports, I/O ports, ac power connectors, two power supply
bays, attention LED indicators for the hot-plug PCI boards, and the locator LED/button. Figure 2-6 shows the
LEDs located on the rear panel of the HP server. They include the:
• Power supplies
• MP LAN
• 2 port Gigabit ethernet card LAN
•PCI slots 3-8
Figure 2-6 Rack Mount and Pedestal Rear View
Eject Button Activity LED Emergency Eject
Gigabit Ethernet LAN ports
MP LAN LEDs
6 PCI attention LEDs
Locator button/LED
Power supply LEDs
