Chapter 4
Removing and Replacing Components
Removing and Replacing a Processor
58
Step 8. Unlock the processor from the processor extender board by inserting the 2 mm hex end of the
processor installation tool through the processor into the ZIF socket lock and turning it 180 degrees
counterclockwise. Figure 4-15 shows the location of the ZIF socket lock.

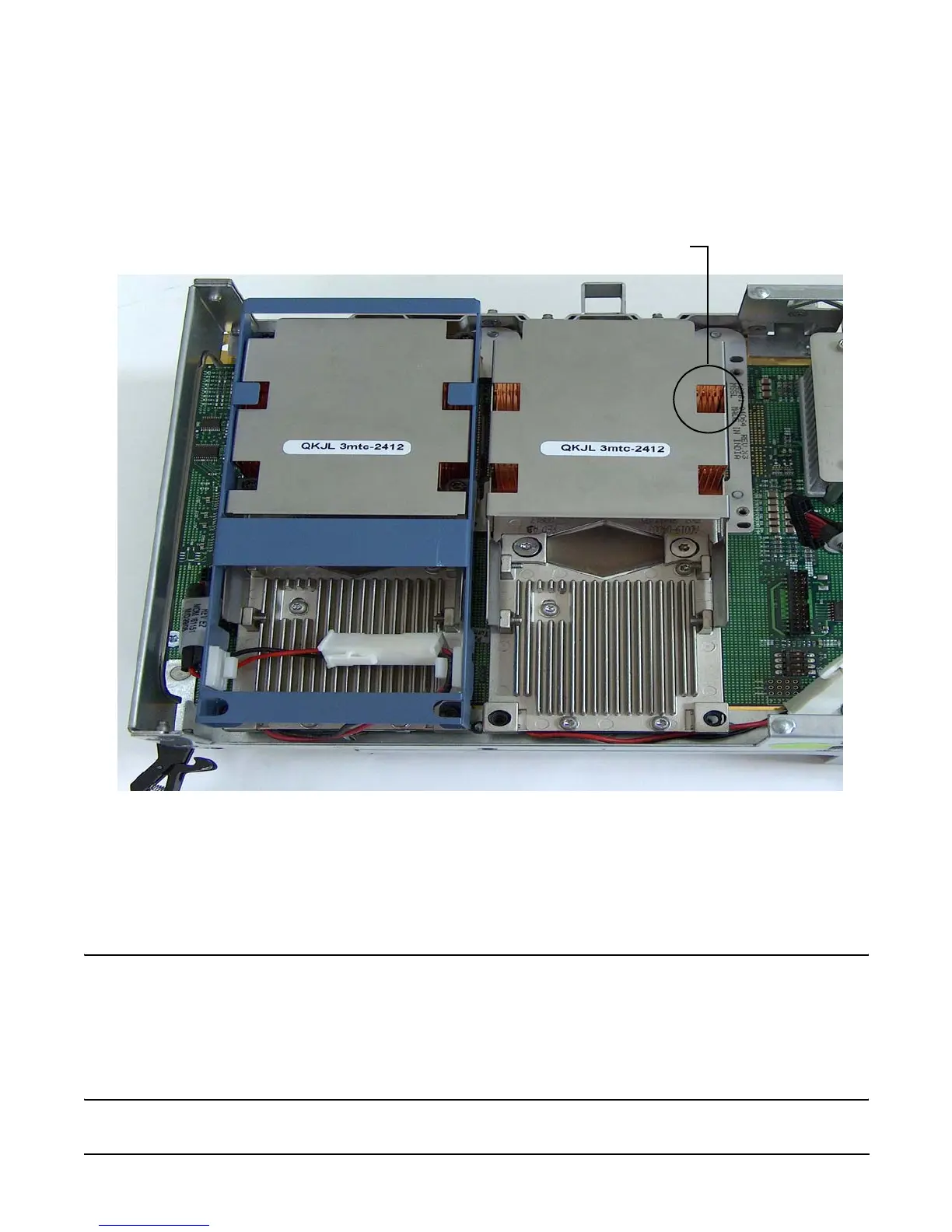

Figure 4-15 Unlocking the Processor from the Processor Extender Board
Step 9. Carefully remove the processor from the processor extender board, and place in an antistatic bag.
Replacing a Processor
To install a processor on the extender board, perform the following steps. If you have already removed the
processor extender board from the server, proceed to step 6.
CAUTION Ensure that the cache size is identical for all processors. Failure to observe this caution will
result in server failure.
Ensure that all processors are rated for use at the same speed. Failure to observe this caution
will result in performance degradation.
Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD
safety precautions could result in damage to the server.
Processor ZIF Socket Lock
To Next Page
