Chapter 4
Removing and Replacing Components
Removing and Replacing the Processor Extender Board
53
Step 4. Press the latch on the extraction levers located on each side of the processor extender board.

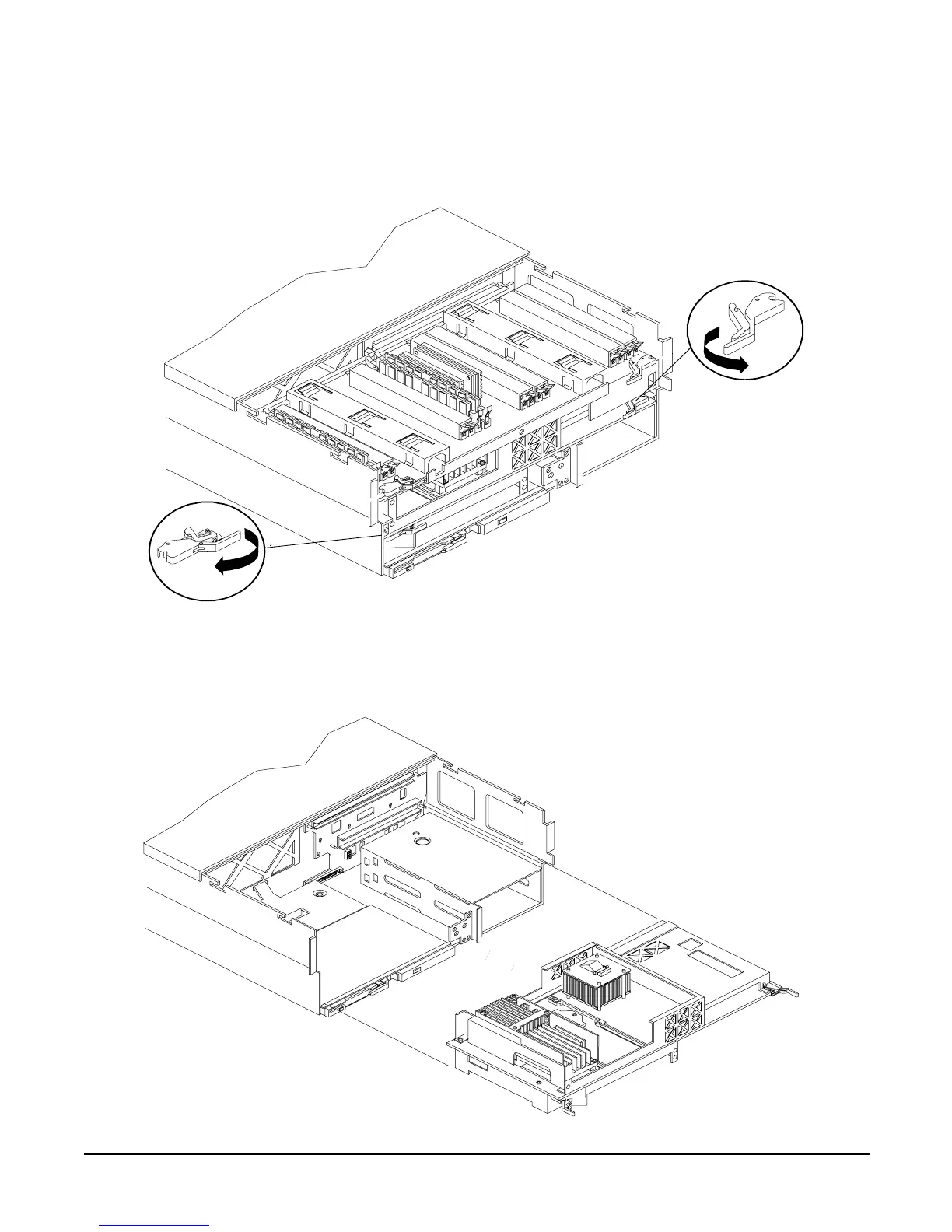

Figure 4-11 shows how to open the processor extender board latches.
Figure 4-11 Opening the Processor Extender Board Latches
Step 5. Pull out on the extraction levers to unplug the processor extender board from the socket located on
the midplane riser board. Figure 4-12 shows how to remove the extender board from the server.
Figure 4-12 Removing and Replacing the Processor Extender Board
