Removing and Replacing Server Memory DIMMs

Table 4-2 details the slot filler requirements when installing DIMMs on the 16 DIMM memory extender

board.

32 DIMM Memory Extender Board Layout

The following details the slot locations, quads, and slot filler requirements on the optional 32 DIMM memory

extender board.

Figure 4-10 shows the slot locations on the optional 32 DIMM extender board.

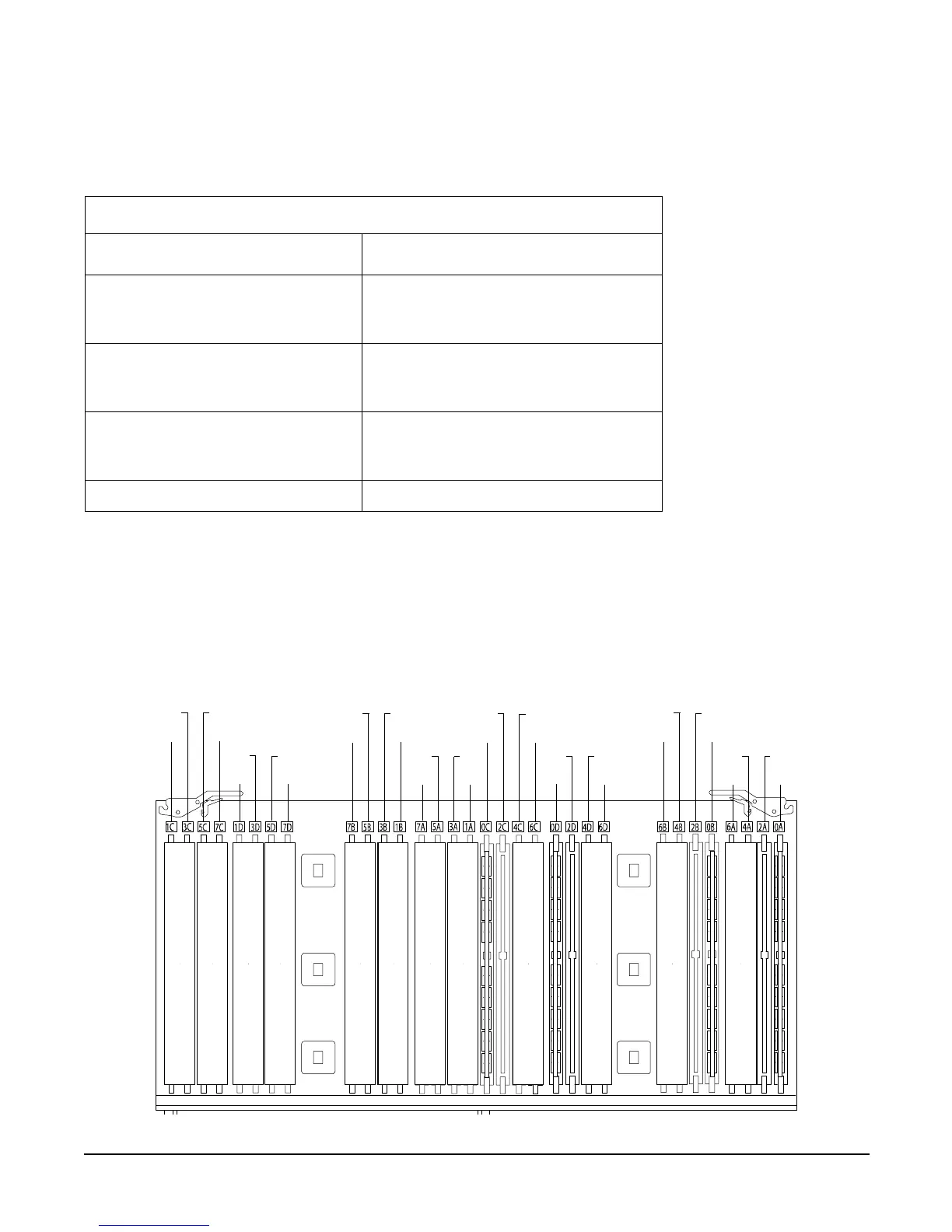

Figure 4-10 32 DIMM Extender Board Slot IDs

Table 4-2 DIMM Filler Requirements for 16 DIMM Extender Board

16 DIMM Extender Board

DIMMs Loaded

Fillers Required

a. One DIMM filler board covers two adjacent DIMM slots.

4 DIMMs in quad 0 6 fillers total:

2 fillers in quads 1, 2, and 3

(all quads filled)

8 DIMMs in quads 0 and 1 4 fillers total:

2 fillers in quads 2 and 3

(all quads filled)

12 DIMMs in quads 0, 1, and 2 2 fillers total:

2 fillers in quads 3

(all quads filled)

16 DIMMs in quads 0, 1, 2, and 3 No fillers required
