Chapter 4
Removing and Replacing Components
Removing and Replacing Hot-Plug PCI-X Cards
78
NOTE After pushing the attention button, you have 5 seconds to cancel the operation by
pushing the attention button again.
Step 9. Replace the top cover.
Step 10. Push the HP server all the way back into the rack until it stops.

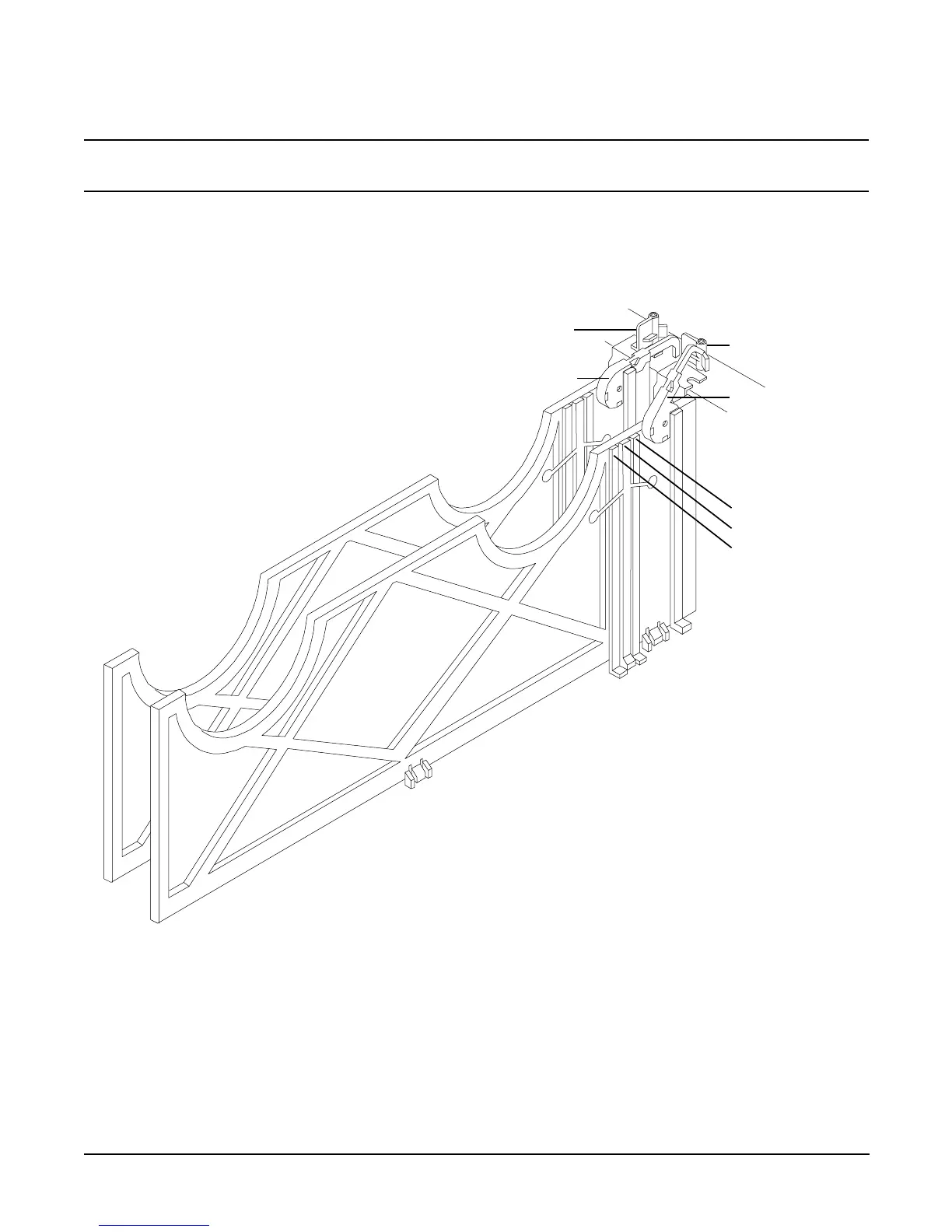

Figure 4-26 PCI-X OLX Divider Layout
PCI-X card latch
closed position
Manual retention
latch—closed
PCI-X card latch
open position
Manual retention
latch—open
Power LED
light pipe
Attention button
Attention LED
light pipe
