Chapter 4
Removing and Replacing Components
Removing and Replacing the I/O Baseboard
67
CAUTION When unplugging the SCSI cables, note the labeling on the SCSI A and SCSI B
channel cables. When plugging in these cables, you must match each cable with its
appropriate socket on the SCSI HBA. If the cables are mismatched your server may
not reboot. Both cables and sockets are clearly marked with the correct channel.
Step 6. Lift up on the locking lever attached to the side of the Power Supply cage to unplug the I/O
baseboard from the socket on the midplane riser board. Figure 4-22 shows the locking lever.

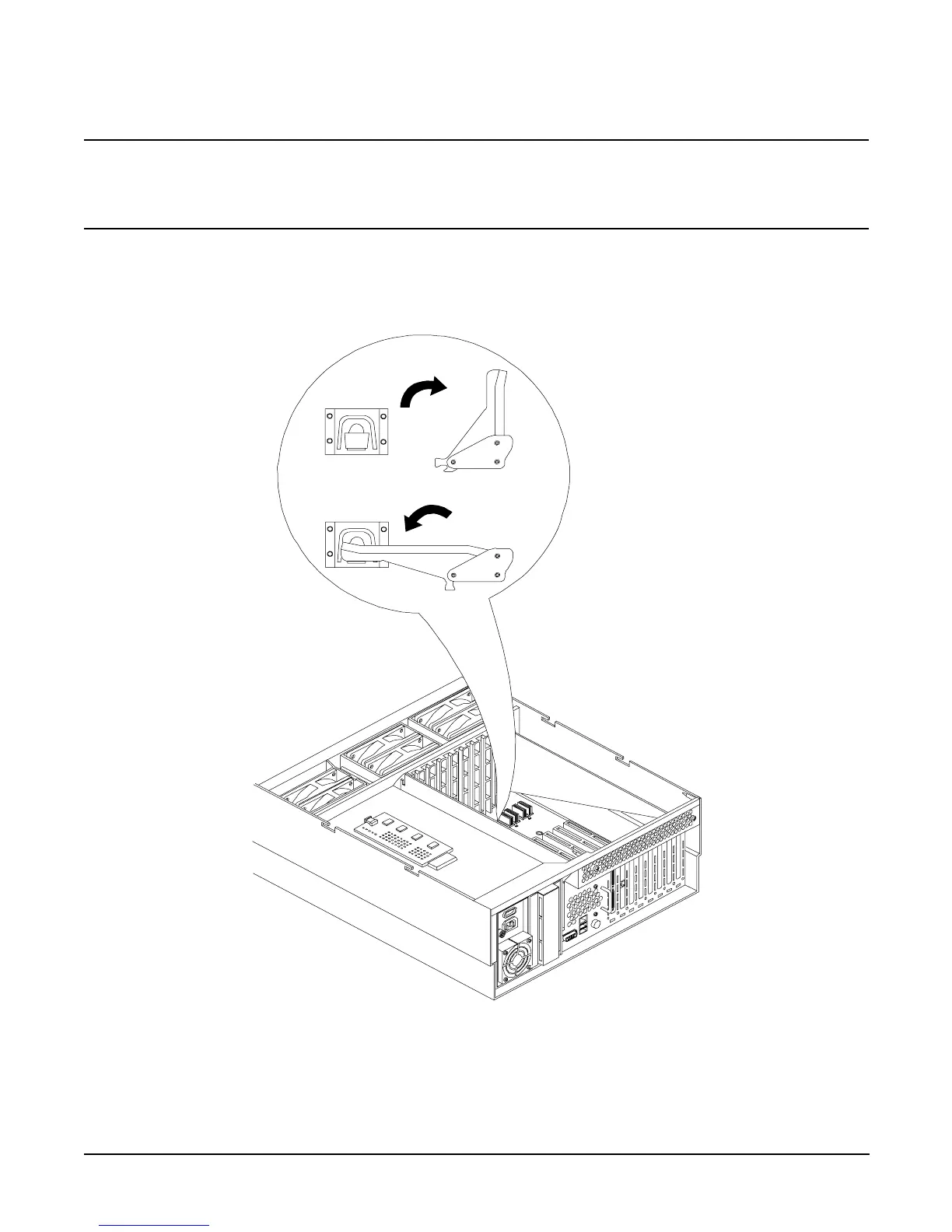

Figure 4-22 I/O Baseboard Locking Lever
OPEN
CLOSE
