HP M525

8. Release the wire harness from the holders.

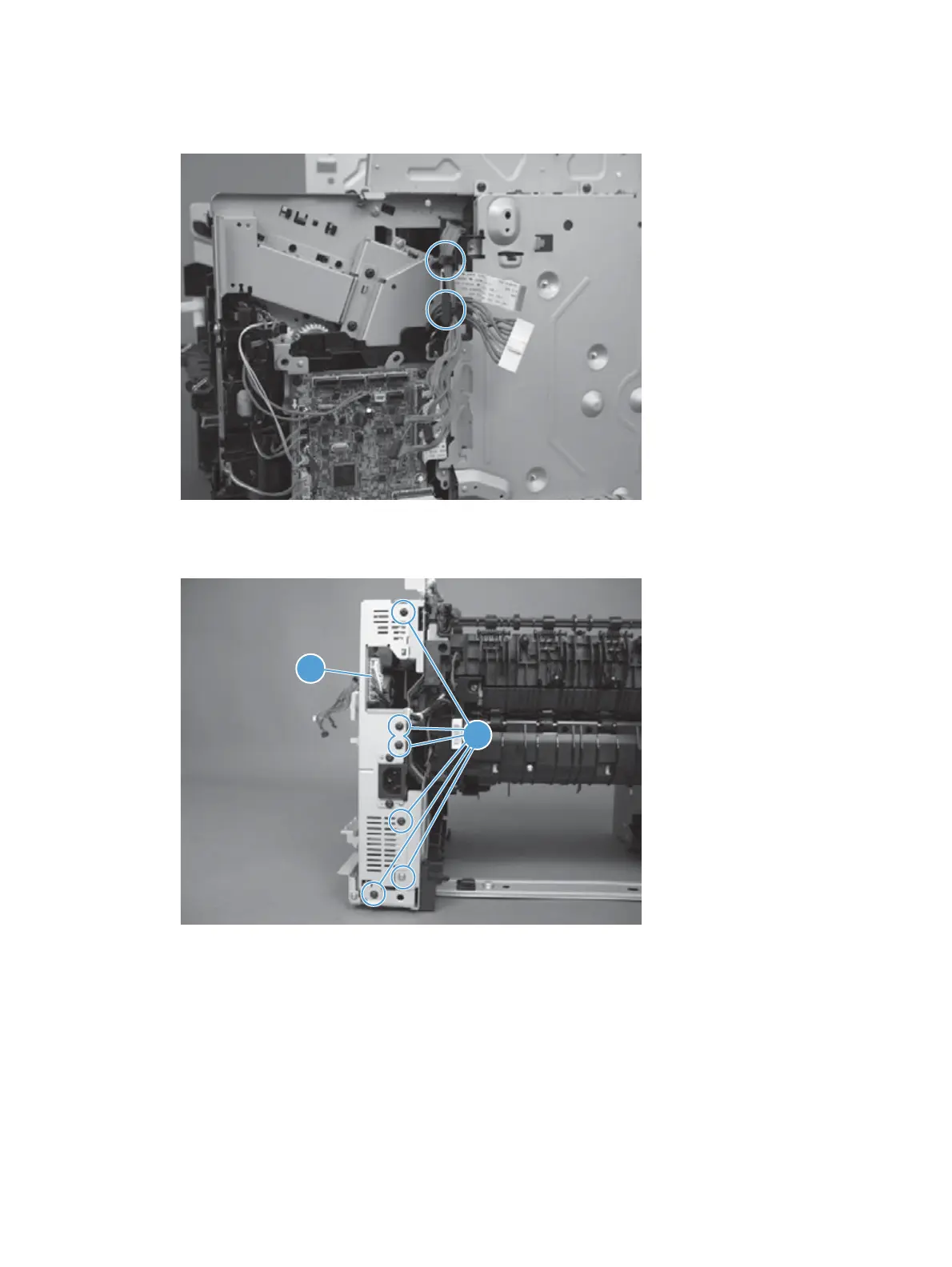

Figure 1-201 Remove the LVPS (6 of 10)
9. Remove six screws (callout 1) and disconnect one connector (callout 2).
Figure 1-202 Remove the LVPS (7 of 10)
2
1
134 Chapter 1 Removal and replacement ENWW
