6. Disconnect one connector.

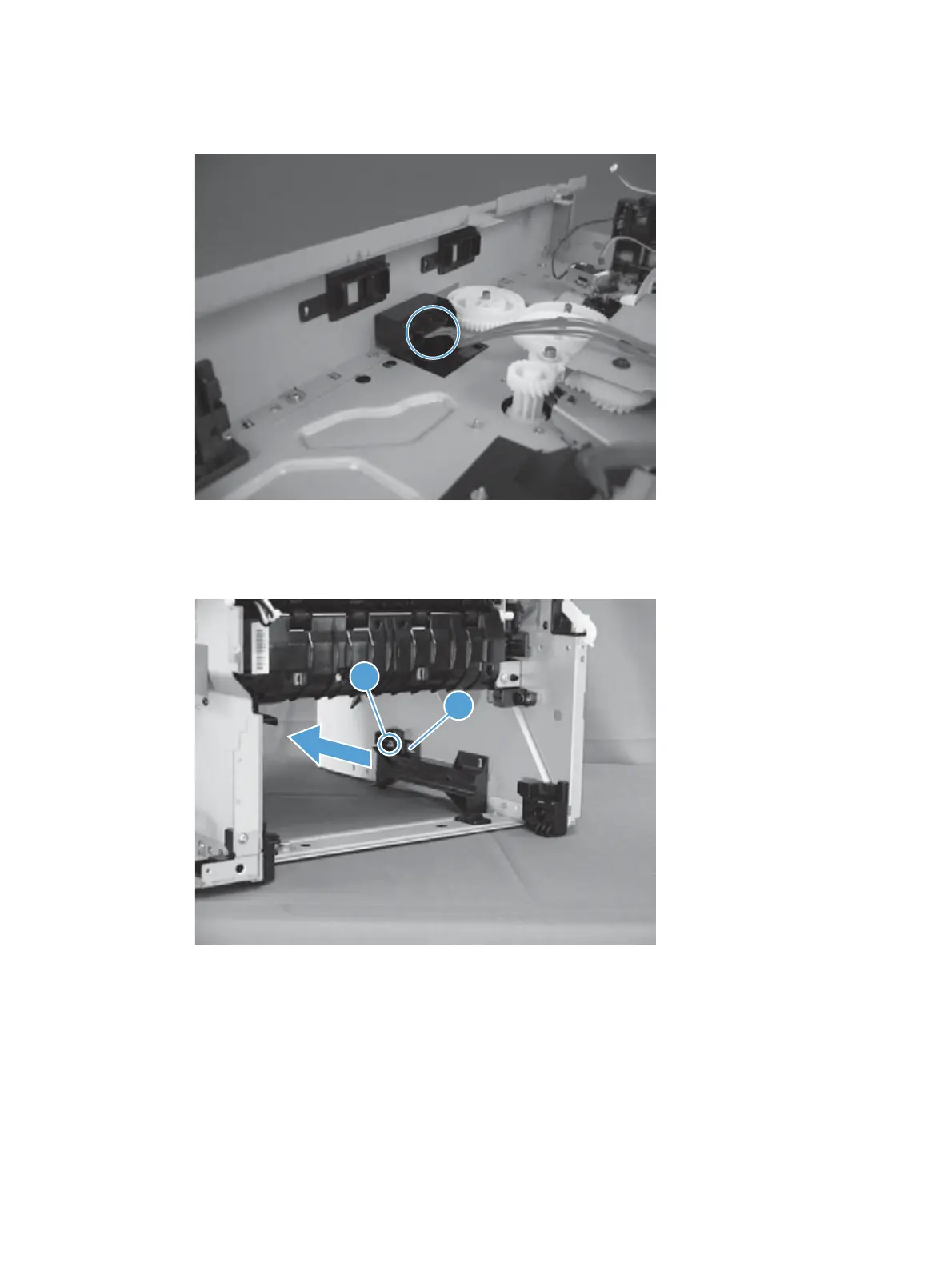

Figure 1-238 Remove the HVPS (5 of 7)
7. Remove one screw (callout 1), release one tab (callout 2) and then slide the guide toward the front
of the product to release it.
Figure 1-239 Remove the HVPS (5 of 11)
1
2
ENWW
Removal and replacement procedures
161
