8. Remove two screws (callout 1) and release one tab (callout 2). Let the sub fan and environmental
sensor hang from their wire harnesses.

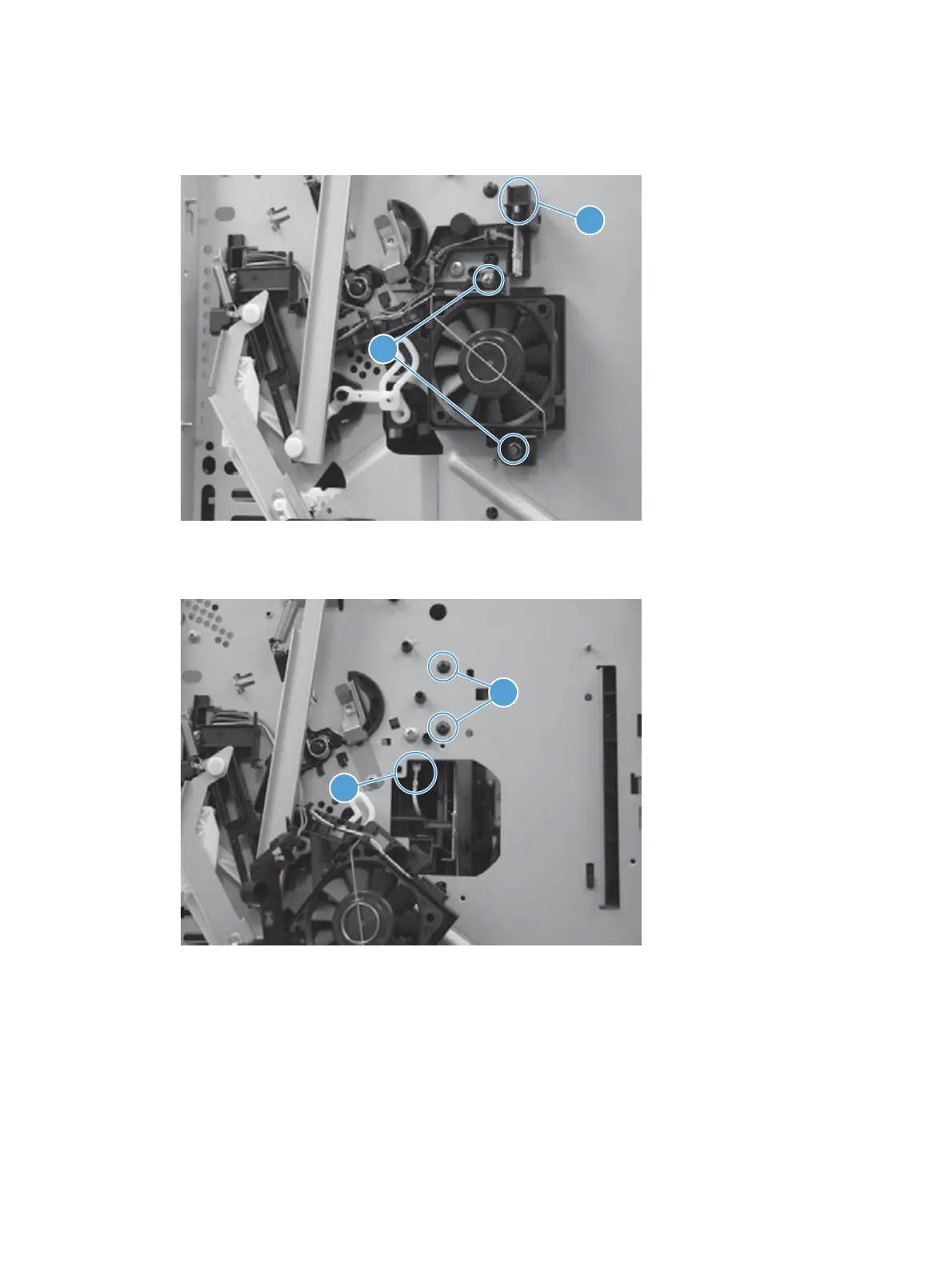

Figure 1-240 Remove the HVPS (5 of 7)
2
1
9. Remove two screws (callout 1), and then disconnect one connector (callout 2).
Figure 1-241 Remove the HVPS (6 of 11)
2
1
162 Chapter 1 Removal and replacement ENWW
