PIM-DM (Dense Mode) on the 5300xl Switches
Displaying PIM Data and Configuration Settings on the Series 5300xl Switches
Displaying PIM Route Data
Syntax: show ip mroute
Without parameters, lists all VLANs actively forwarding
routed, multicast traffic.
Group Address: The multicast address of the specific
multicast group (flow).
Source Address: The unicast address of the multicast group
source.
Neighbor: The IP address of the upstream multicast router
interface (VLAN) from which the multicast traffic is coming.
A blank field for a given multicast group indicates that the
multicast server is directly connected to the routing switch.
VLAN: The interface on which the multicast traffic is moving.

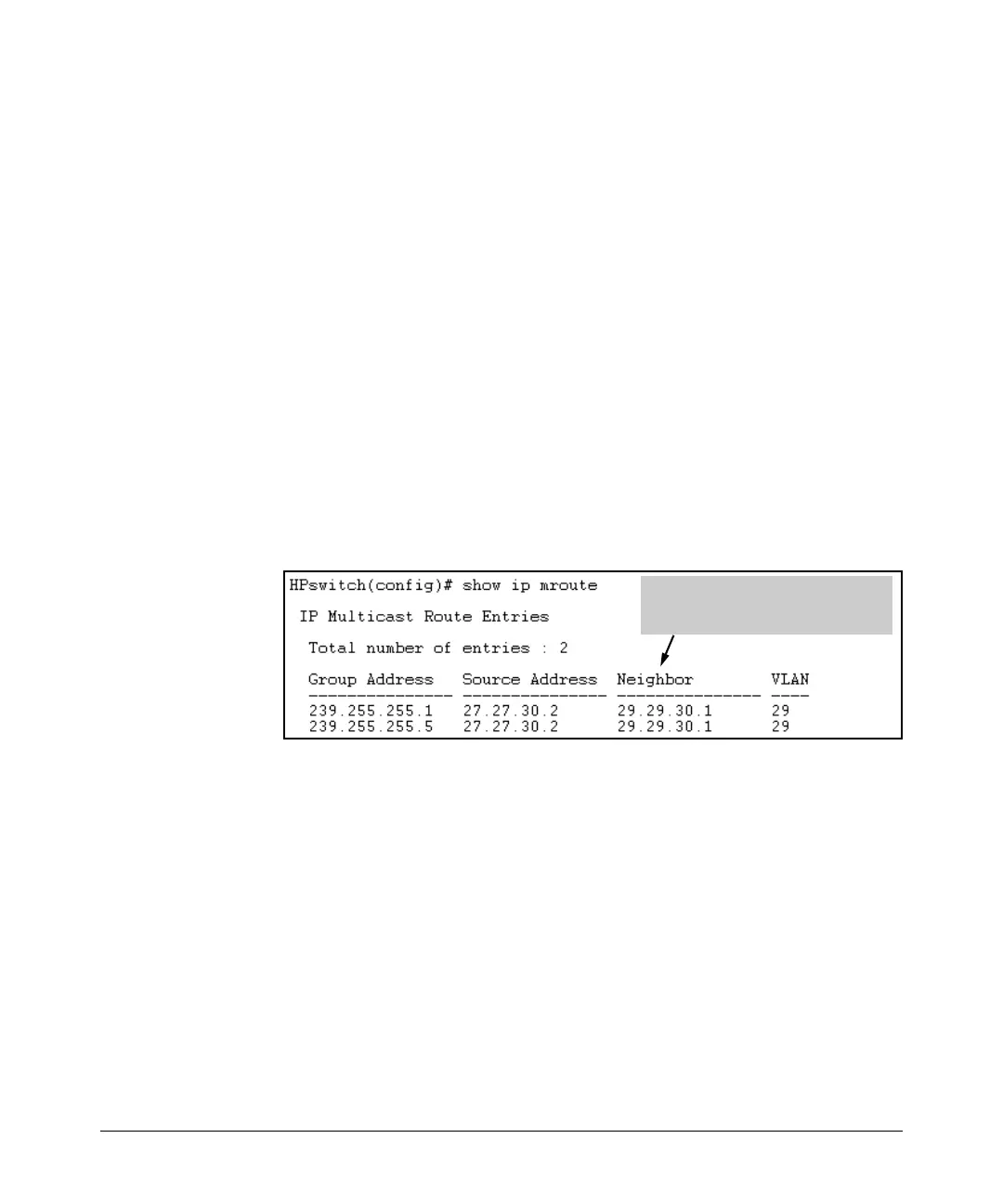

For example, the next figure displays the show ip route output on the “5300XL
#2” routing switch in figure 5-4 on page 5-20. This case illustrates two multicast
groups from the same multicast server source.
Indicates the upstream multicast
router interface (VLAN) from which the
multicast traffic is coming.
Figure 5-7. Example Showing the Route Entry Data on the “5300XL #2” Routing
Switch in Figure
5-4 on Page 5-20
