Connectors, LED Indicators, Switches, and Jumpers
Compaq ProLiant DL380 Generation 2 Maintenance and Service Guide 4-21
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 12:45 PM
Jumpers
The ProLiant DL380 Generation 2 server contains one two-pin bootblock flash jumper. It
enables the user to configure the system board for a bootblock flash of the system ROM
(Figure 4-14).

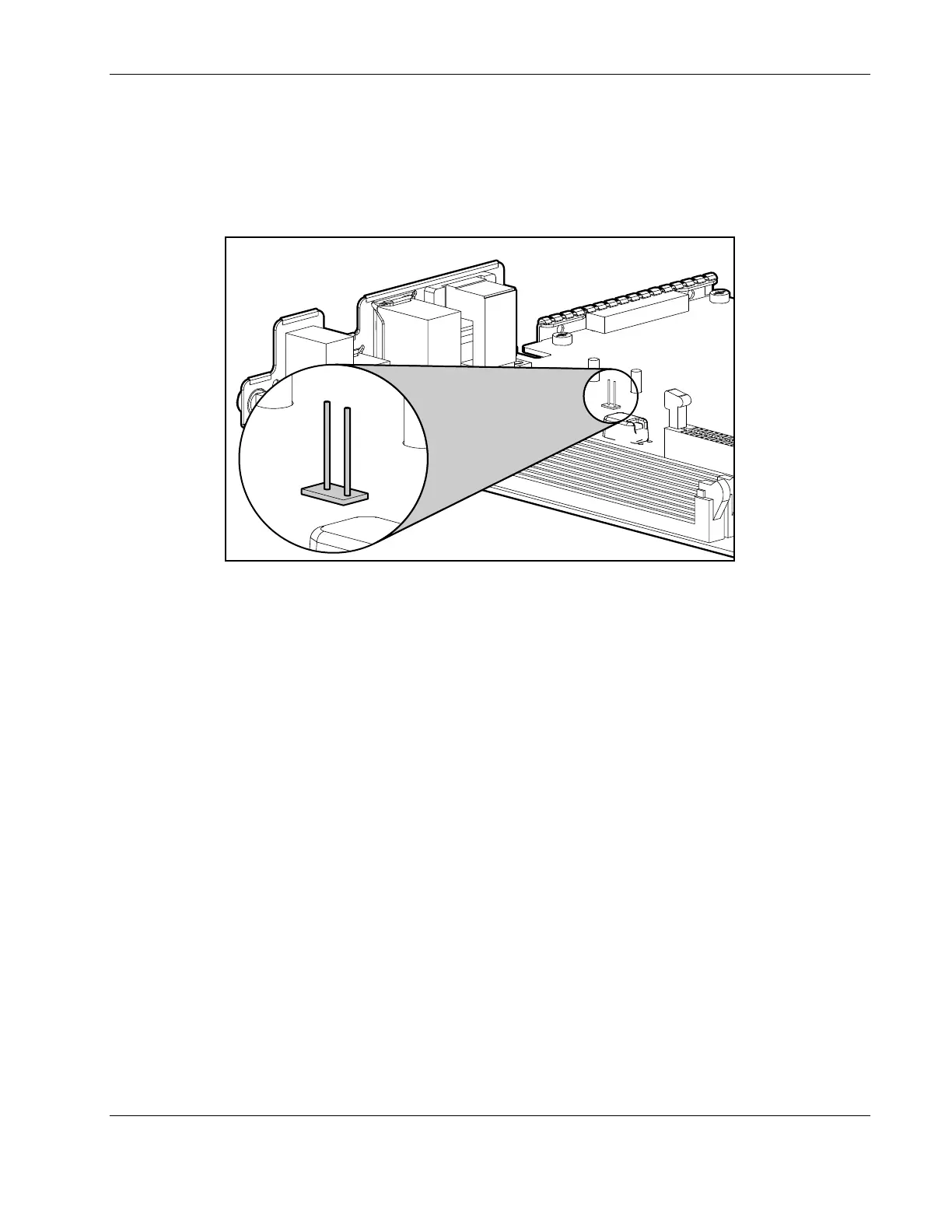

Figure 4-14: Bootblock flash jumper
To perform a bootblock flash of the system ROM, contact your Compaq authorized service
provider for the appropriate utility.

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
