Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-39
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
Expansion Slot Cover (Slot 1)
To remove an expansion slot cover from slot 1:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Remove the PCI riser cage. See the “PCI Riser Cage” section in this chapter.
5. Remove the expansion slot thumbscrew
.
6. Remove the expansion slot cover from slot 1
.
1
2

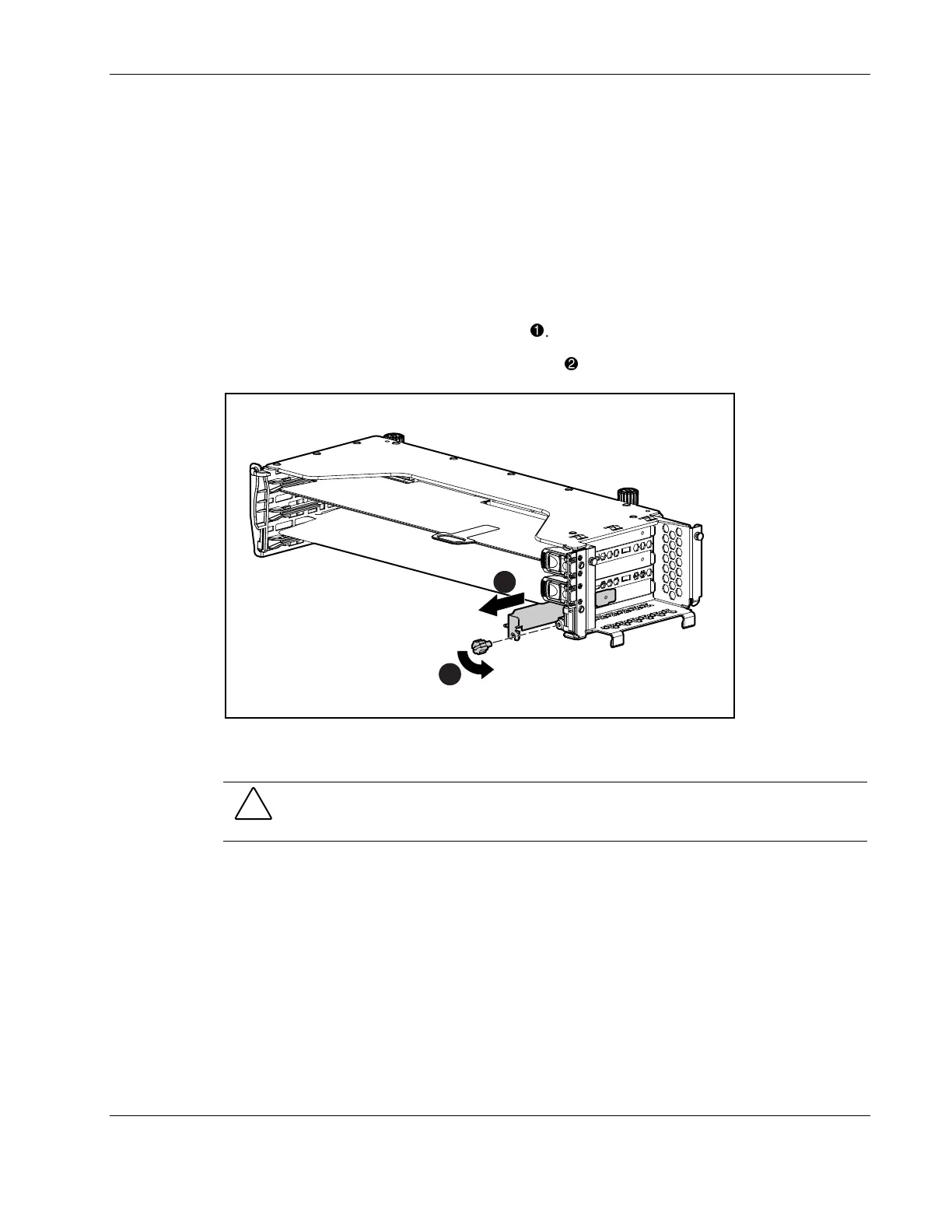

Figure 2-34: Removing the expansion slot cover from
slot 1
CAUTION: Always install either an expansion board or an expansion slot cover. Operating
the server without an expansion board or slot cover results in improper airflow and cooling
that can lead to thermal damage.
Reverse steps 1 through 6 to replace the expansion slot cover.
