Power Button/LED Board
To remove the power button/LED board:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Disconnect the power button/LED cable from the power button/LED board  .
5. Press the locking tab
 .
6. Slide the power button/LED board out of the chassis
 .
1
3
2

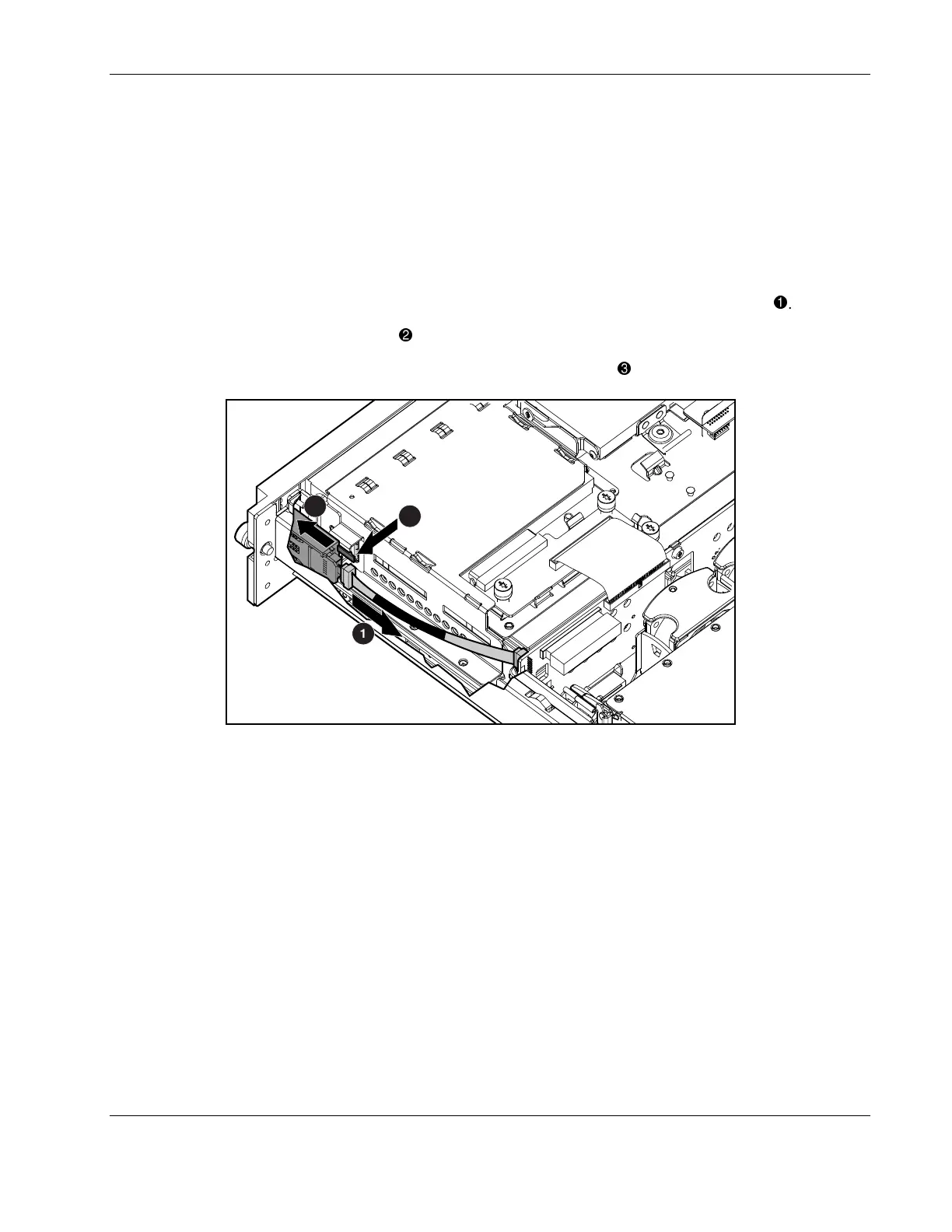

Figure 2-42: Removing the power button/LED board
Reverse steps 1 through 6 to replace the power button/LED board.

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
