Removal and Replacement Procedures
2-40 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
PCI Expansion Board Ejector/Divider
To remove the expansion board ejector/divider:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Remove the PCI riser cage. See the “PCI Riser Cage” section in this chapter.
5. Remove the three Torx T-15 screws that secure the expansion board ejector/divider
.
6. Slide the expansion board ejector/divider toward the rear of the cage
. This action
dislodges the front tabs of the ejector/divider from the front of the cage.
7. Remove the expansion board ejector/divider from the cage
.
2
1
1
1
3

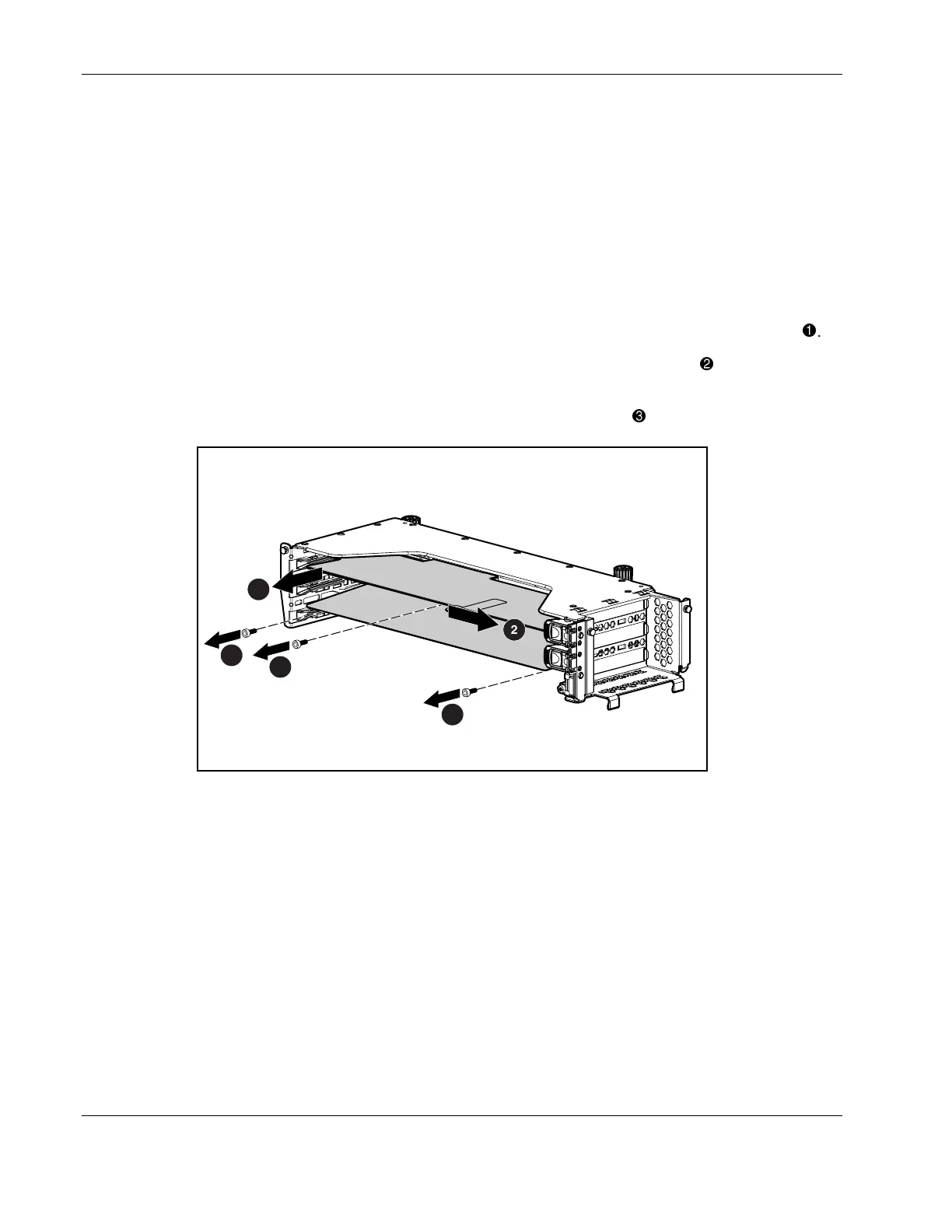

Figure 2-35: Removing the PCI expansion board ejector/divider
Reverse steps 1 through 7 to replace the PCI expansion board ejector/divider.
