Illustrated Parts Catalog
Compaq ProLiant DL380 Generation 2 Server Maintenance and Service Guide 1-3
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 12:45 PM
System Components
11
16
14
7
9
15
10
19
7
8
23
17
1213
22
18
20
21

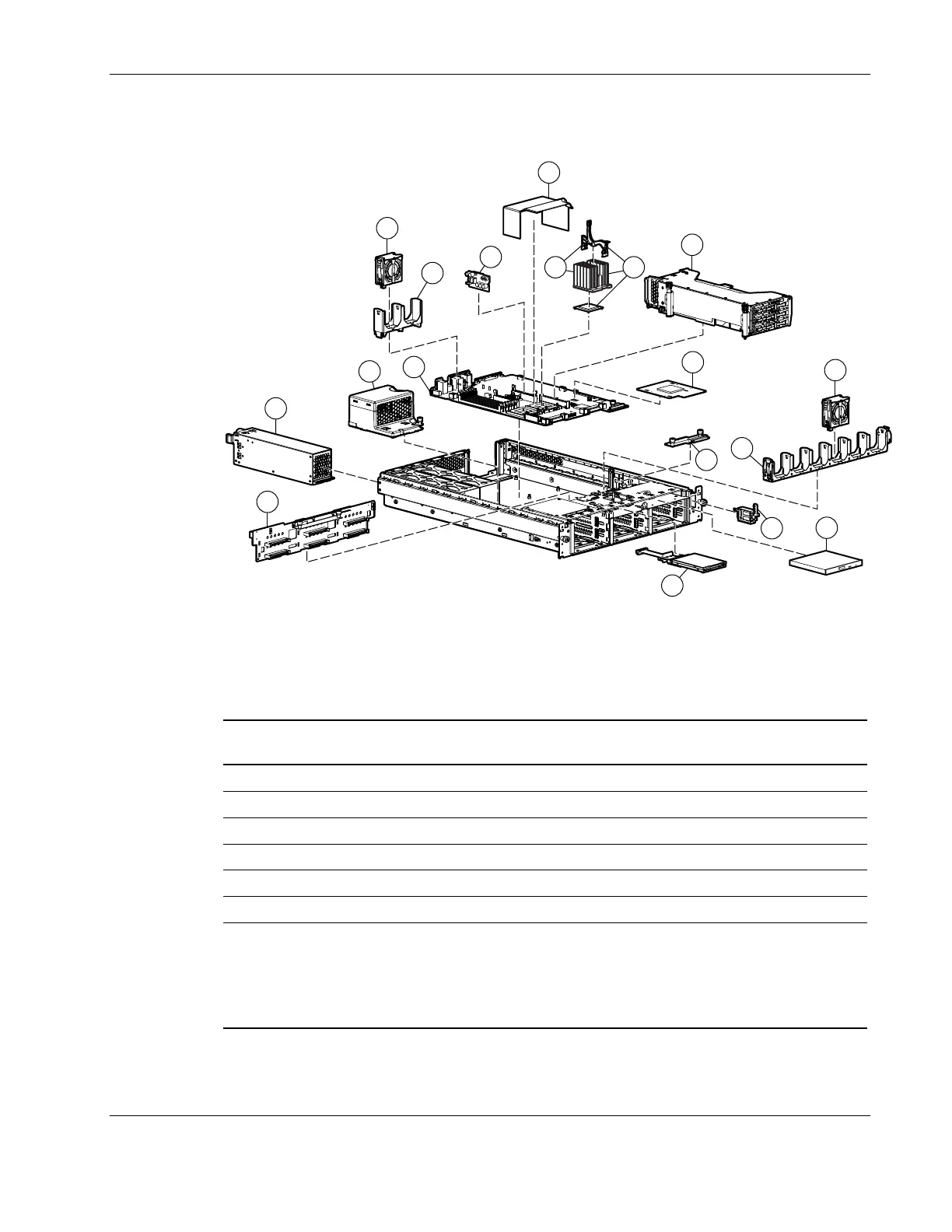

Figure 1-2: System components
NOTE: Items not shown in the illustration are indicated with an asterisk in the spare parts list.
Table 1-2: System Components Spare Parts List
Item Description Part Number Spare Part
Number
System Components
7 Hot-plug fan, 60-mm 218382-001 228513-001
8 Front fan bracket, 6-bay 218383-001 228514-001
9 Rear fan bracket, 2-bay 218667-001 228493-001
10 Hot-plug power supply, 400-W 194989-001 228509-001
11 PCI riser cage, with boards 227238-001 228495-001
12 Intel Pentium III processors
a) 1.13-GHz processor, heatsink, and heatsink clip
b) 1.26-GHz processor, heatsink, and heatsink clip
c) 1.40-GHz processor, heatsink, and heatsink clip
235384-003
235384-002
235384-004
228524-001
228496-001
259593-001
continued
