Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-49
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
Processors
To remove a processor:
1. Power down the server. See the Powering Down the Server section in this chapter.
2. Extend or remove the server from the rack. See the Preparation Procedures section in
this chapter.
3. Remove the access panel. See the Access Panel section in this chapter.
4. Remove the air baffle. See the Air Baffle section in this chapter.
5. Open the locking lever on the heatsink-retaining clip
.
6. Press the base of the heatsink-retaining clip and lift the opposite end of the clip to
disengage the clip from the processor socket
.
7. Remove the heatsink-retaining clip
.
2
3
1

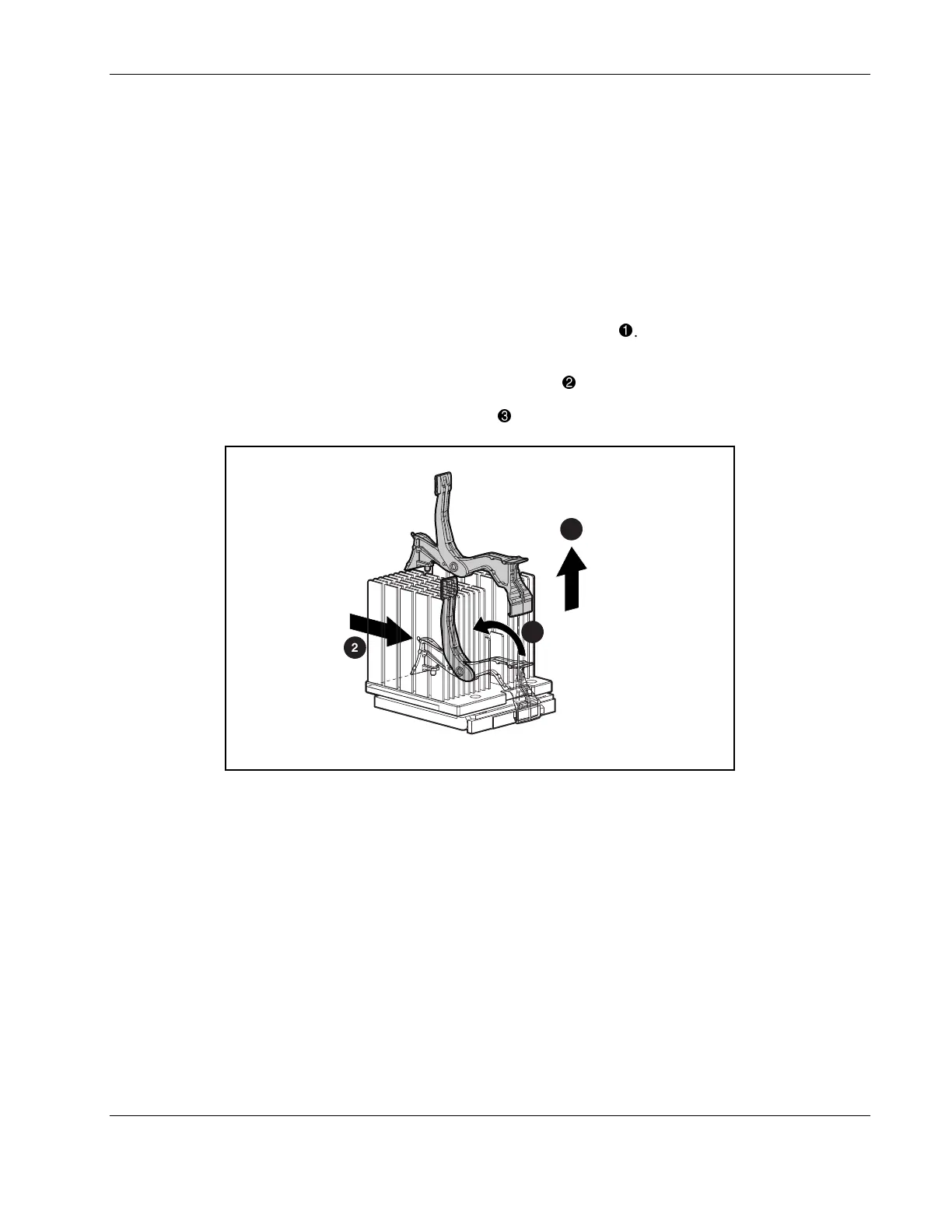

Figure 2-44: Disengaging the heatsink-retaining clip
