Connectors, LED Indicators, Switches, and Jumpers
4-14 Compaq ProLiant DL380 Generation 2 Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 12:45 PM
Power Converter Module LED
The power converter module LED indicates whether the power converter module is
functioning properly (Figure 4-11).

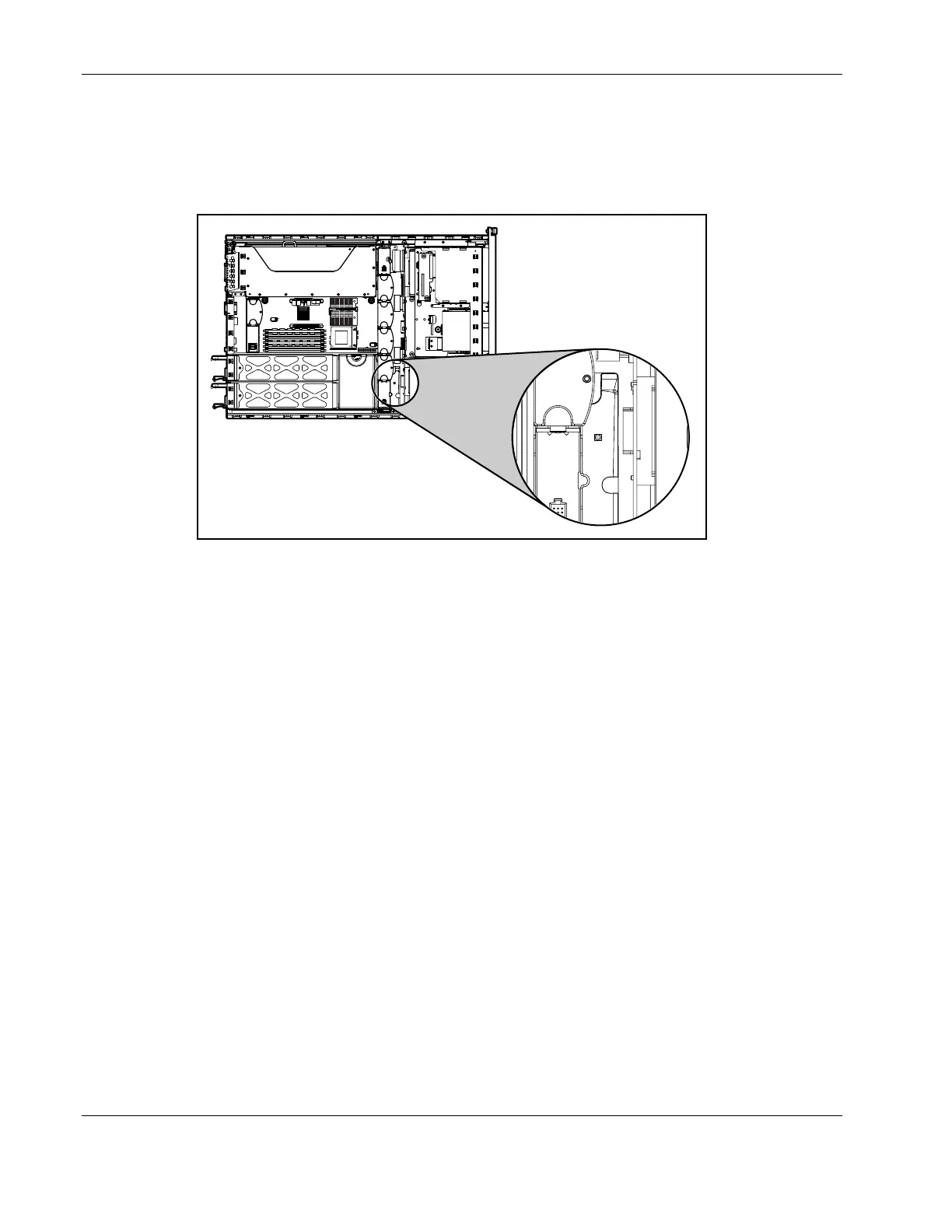

Figure 4-11: Power converter module LED
The power converter module LED indicates the following conditions:
Amber = The power converter module has failed.
Off = The power converter module is functioning.
System Board LEDs
The following LEDs are located on the system board:
Processor failure
PPM failure
Memory failure
Overtemperature
Riser/SCSI interlock failure
Use Figure 4-12 and Table 4-8 to identify system board LEDs location and status.
