Removal and Replacement Procedures
2-32 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
CD Ejector Assembly
To remove the CD ejector assembly:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Remove the CD-ROM drive or CD blank:
a. If a CD-ROM drive is installed in the bay, see the “CD-ROM Drive” section in this
chapter.
b. If a CD blank is installed in the bay, see the “CD Blank” section in this chapter.
5. Remove the diskette drive. See the “Diskette Drive” section in this chapter.
6. Remove the CD MultiBay adapter board. See the “CD MultiBay Adapter Board” section
in this chapter.
7. Use a Torx T-15 screwdriver to remove the ejector lever screw
.
8. Remove the ejector lever
.
1
2

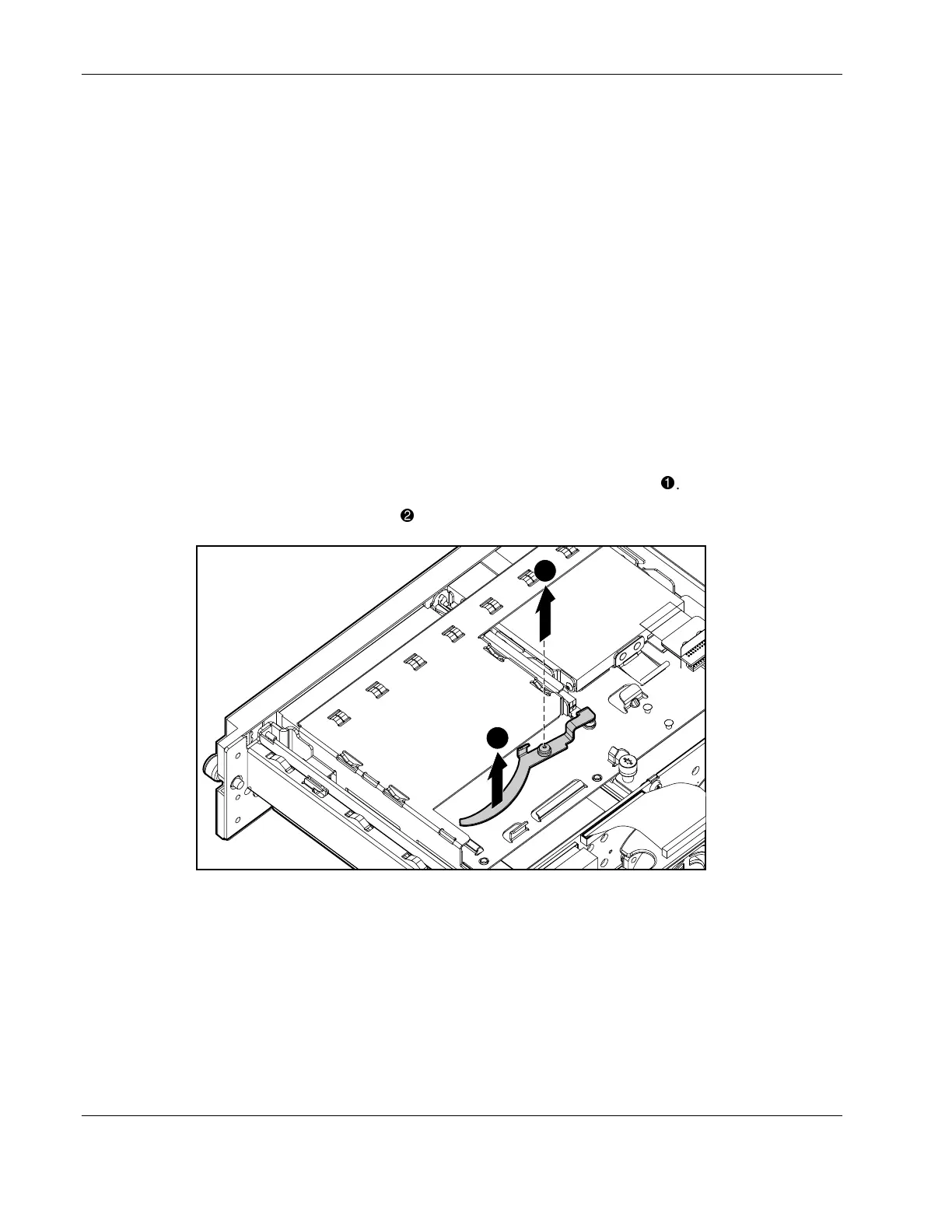

Figure 2-27: Removing the ejector lever
