Removal and Replacement Procedures
2-60 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
Rear Fan Bracket
To remove the rear fan bracket:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Remove the PCI riser cage. See the “PCI Riser Cage” section in this chapter.
5. Remove the air baffle. See the “Air Baffle” section in this chapter.
6. Remove all hot-plug fans. See the “Hot-Plug Fan” section in this chapter.
7. Remove the front fan bracket. See the “Front Fan Bracket” section in this chapter.
8. Remove the system board. See the “System Board” section in this chapter.
NOTE: When removing the system board, you may leave the DIMMs, the processors, the PPMs, the
Smart Array 5i Controller, and the system battery on the system board, unless you are replacing them
as failed items.
9. Use a Torx T-15 screwdriver to remove the screws that secure the rear fan bracket to the
system board
.
10. Rotate the rear fan bracket toward the edge of system board and remove the bracket
.
1
1
2

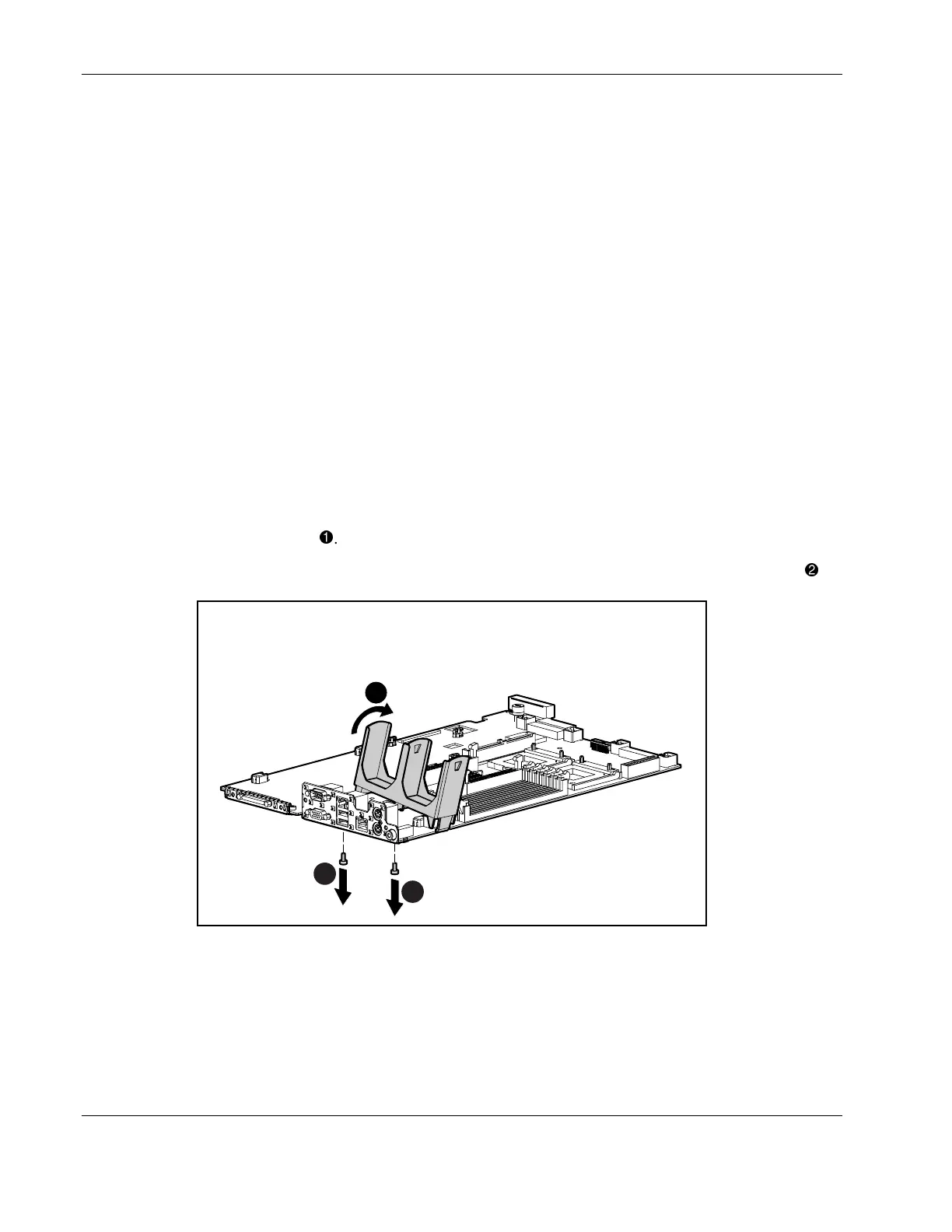

Figure 2-55: Removing the rear fan bracket
Reverse steps 1 through 10 to replace the rear fan bracket.
