Removal and Replacement Procedures
2-28 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
Non-Hot-Plug Procedures
You must power down the ProLiant DL380 Generation 2 server to perform non-hot-plug
removal and replacement procedures. The components in this section are non-hot-plug
service items, regardless of rack type or environment.
Front Bezel
To remove the front bezel:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Remove any hot-plug SCSI hard drives, if installed. See the “Hot-Plug SCSI Hard Drive”
section in this chapter.
5. Remove any hard drive blanks, if installed. See the “Hard Drive Blank” section in this
chapter.
6. Remove the tape drive, if installed. See the “Universal Hot-Plug Tape Drive” section in
this chapter.
7. Use a Torx T-15 screwdriver to remove the four bezel screws
.
8. Tilt the top of the bezel downward
.
9. Remove the bezel
.
2
3
1
1
1

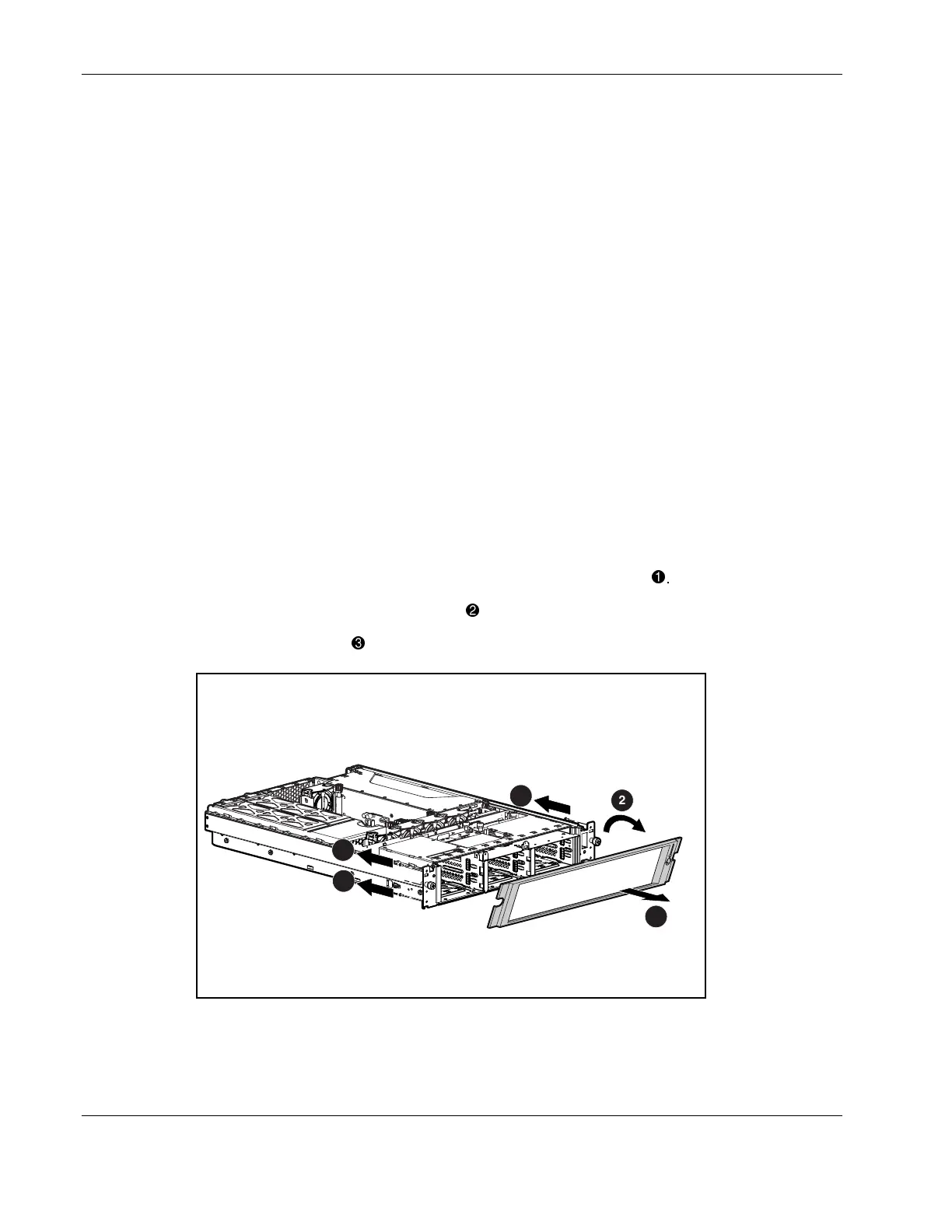

Figure 2-23: Removing the front bezel
Reverse steps 1 through 8 to replace the front bezel.
