Removal and Replacement Procedures
2-8 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
• For hot-plug drive procedures, determine whether the drive is part of an array. For more
information, refer to the “Hot-Plug SCSI Hard Drive Replacement Guidelines” in the
Compaq Servers Troubleshooting Guide.
• For hot-plug expansion board procedures, ensure that the proper drivers for PCI Hot Plug
functionality are installed. For more information, refer to the Compaq ProLiant DL380
Generation 2 Server Setup and Installation Guide.
Hot-Plug SCSI Hard Drive
CAUTION: If you are replacing a drive that is part of an array, observe the “Hot-Plug SCSI
Hard Drive Replacement Guidelines” from the Compaq Servers Troubleshooting Guide.
To remove a hot-plug SCSI hard drive:
1. Press the release button to unlock the lever on the hard drive
.
2. Pull the ejector lever to release the SCSI hard drive from the cage
.
3. Pull the drive to remove it from the cage
.
3
2
1

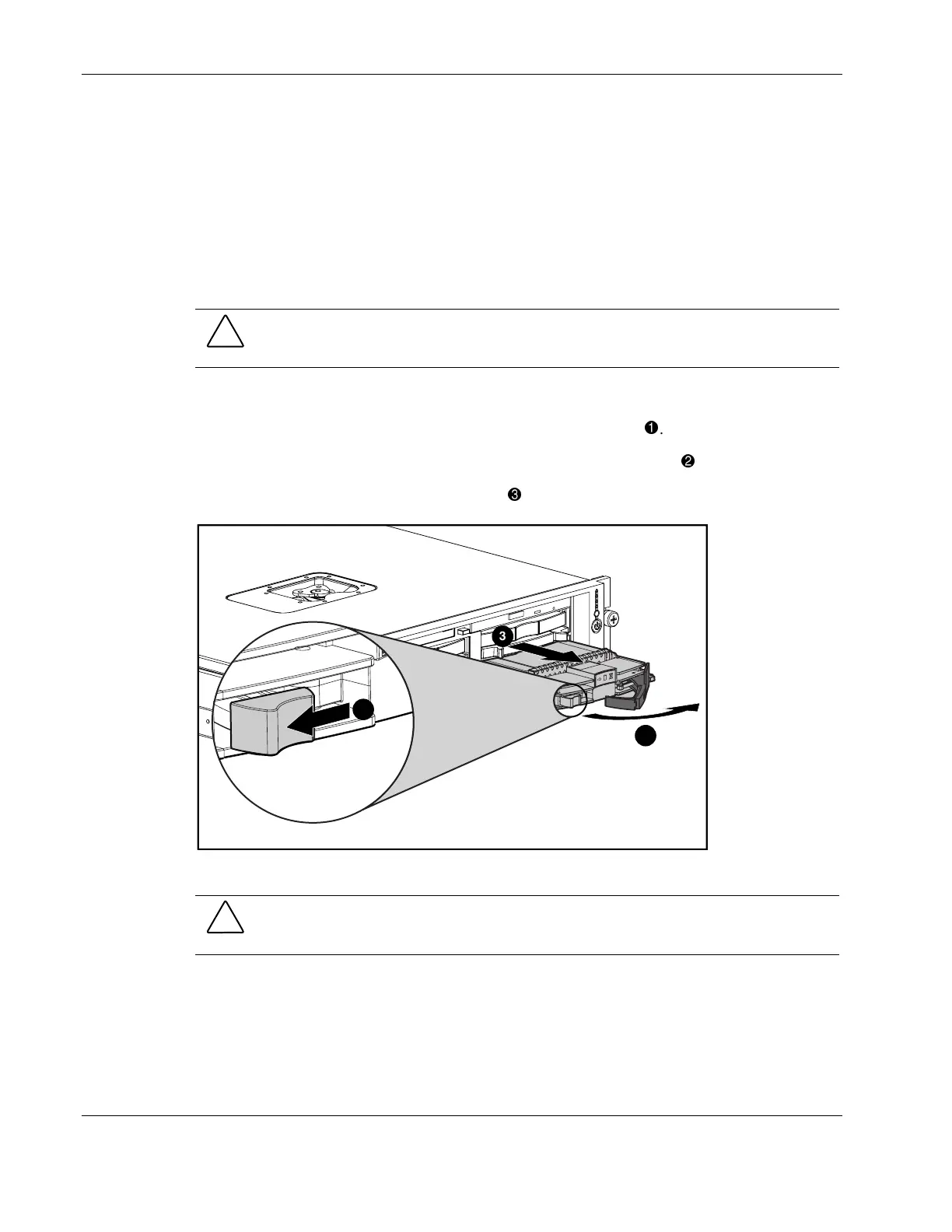

Figure 2-4: Removing a hot-plug SCSI hard drive
CAUTION: Always populate hard drive bays with either a hard drive or blank. Operating the
server without a hard drive or blank results in improper airflow and improper cooling that can
lead to thermal damage.
IMPORTANT: Always populate hard drive bays starting with the lowest SCSI ID.
To replace the hard drive:
1. Slide the drive into the cage until it clicks, locking the drive into place.
