RJ-45 Network Connector LEDs
The RJ-45 network connector on the server rear panel has two LEDs. Use Figure 4-7 and
Table 4-7 to identify the location and status of the LEDs.
3
2
1
2

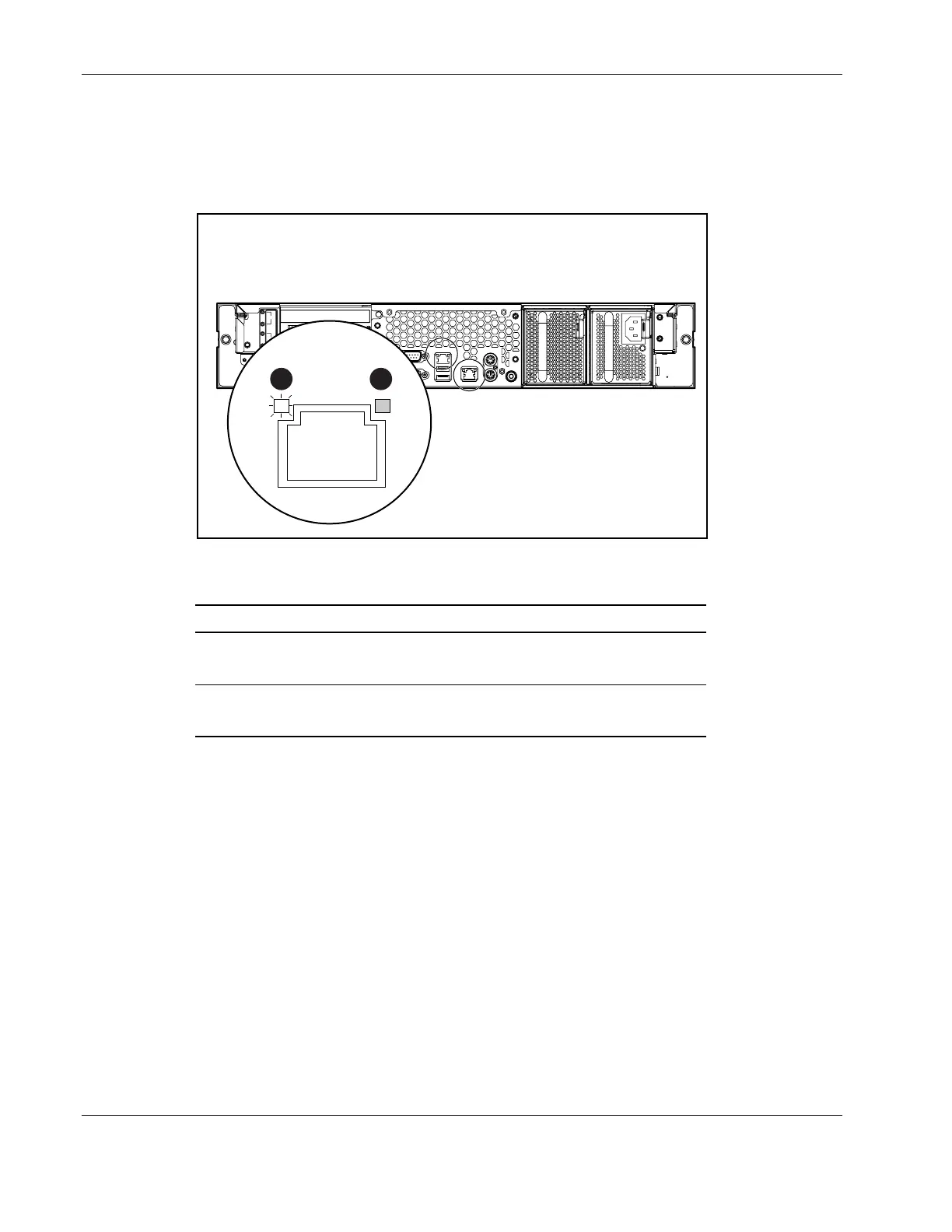

Figure 4-7: RJ-45 network connector LEDs
Table 4-7: RJ-45 Network Connector LEDs
Item LED Description Status
1 Activity (green) On or flashing = Network activity
Off = No network activity
2 Link (green) On = Linked to the network
Off = Not linked to the network
