Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-43
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
PCI Lightpipe and Cover
To remove the PCI lightpipe and cover:
1. Power down the server. See the Powering Down the Server section in this chapter.
2. Extend or remove the server from the rack. See the Preparation Procedures section in
this chapter.
3. Remove the access panel. See the Access Panel section in this chapter.
4. Press down on the locking tab that secures the lightpipe cover to the chassis
.
5. Tilt the top of the lightpipe cover away from the chassis
.
6. Remove the lightpipe cover from the chassis
.
1
2
3

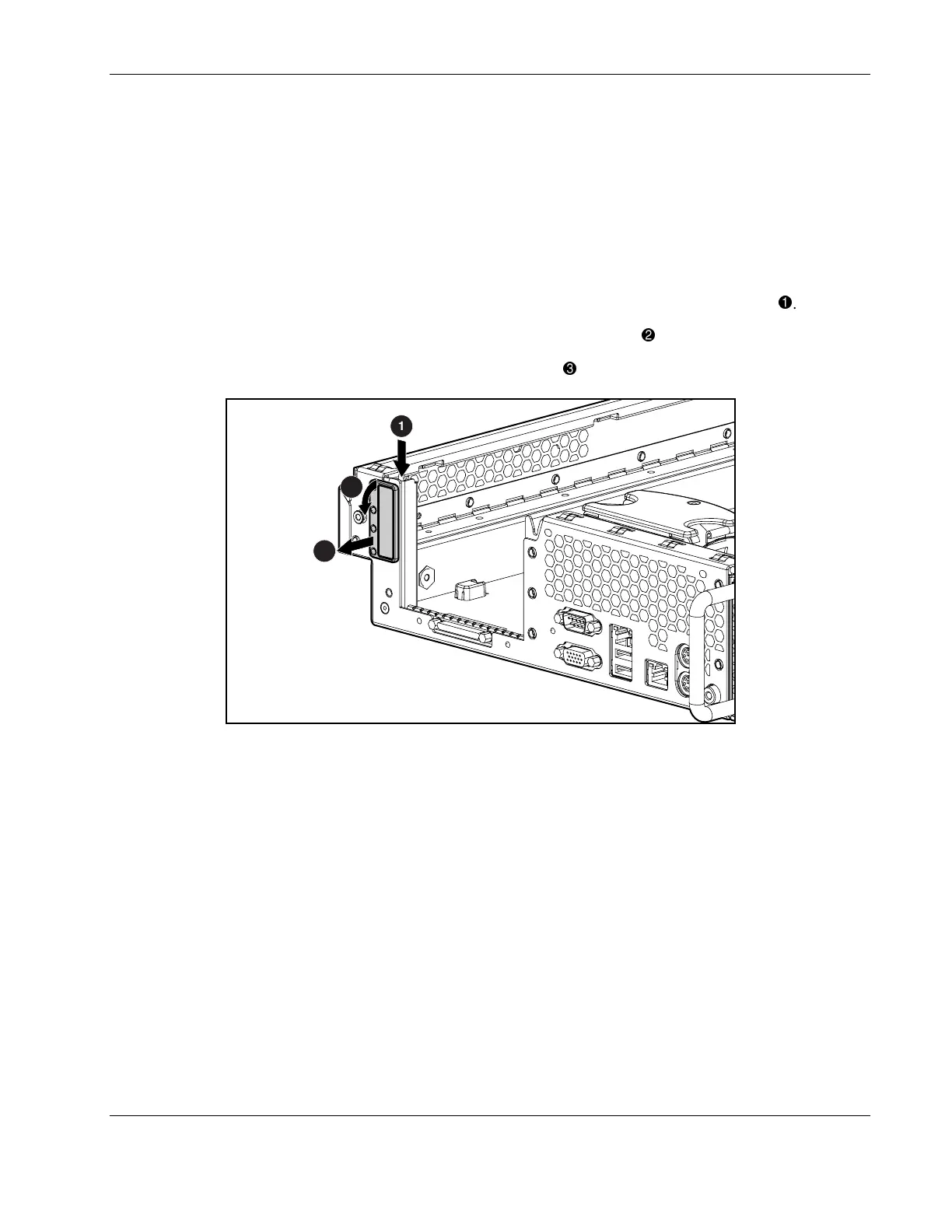

Figure 2-38: Removing the PCI lightpipe cover
