Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-65
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
PCI Hot Plug Backplane Cable
To remove the PCI Hot Plug backplane cable:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Remove the PCI riser cage. See the “PCI Riser Cage” section in this chapter.
5. Disconnect the PCI Hot Plug backplane cable from the PCI Hot Plug backplane
.
6. Disconnect the PCI Hot Plug backplane cable from the PCI riser board
.
1
2

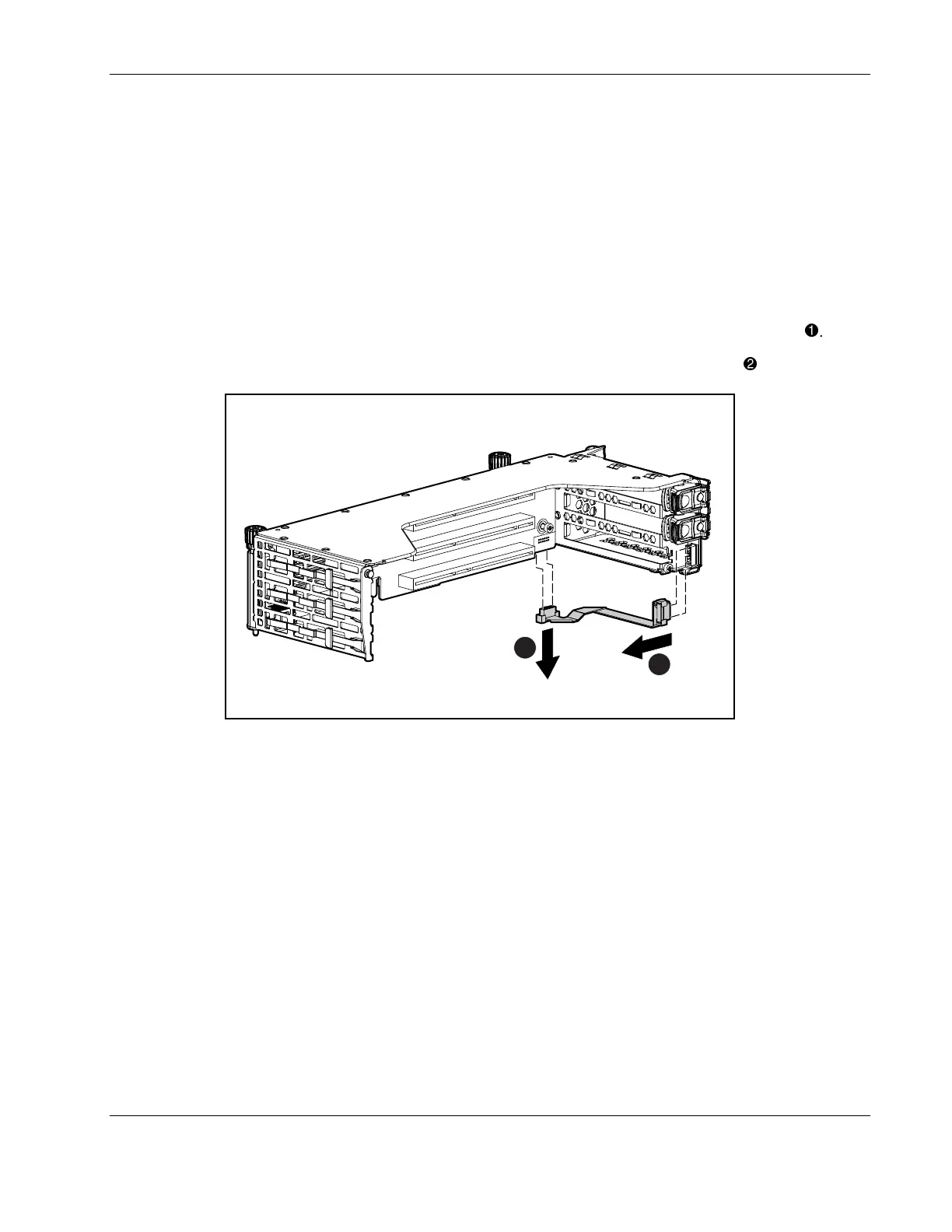

Figure 2-60: Removing the PCI Hot Plug backplane cable (PCI
expansion board ejector/divider removed for clarity)
Reverse steps 1 through 6 to replace the PCI Hot Plug backplane cable.
