HP ProLiant DL380 - G2 Server User Manual

Illustrated Parts Catalog
1-2 Compaq ProLiant DL380 Generation 2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 12:45 PM
Mechanical Components
1
6
5
2
4
3

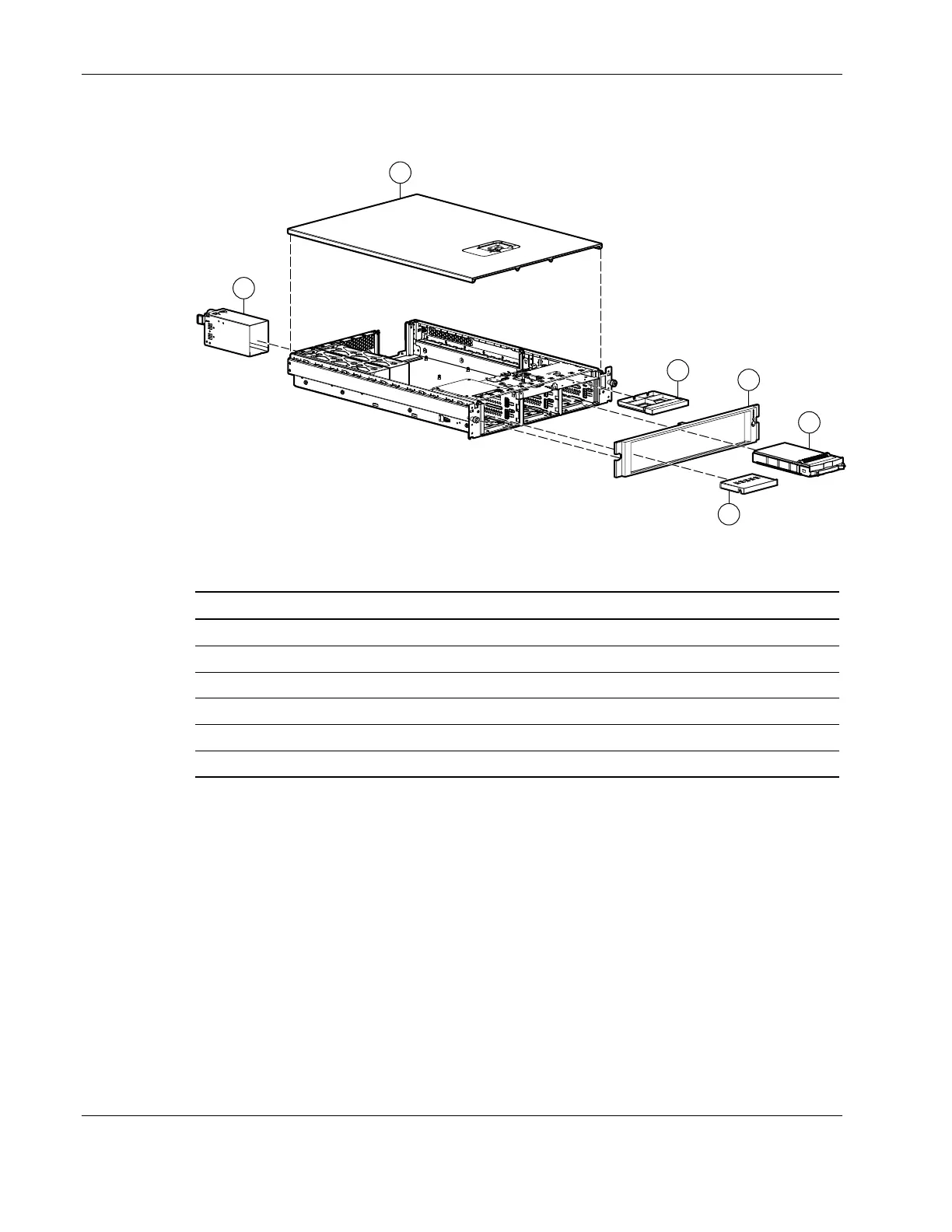

Figure 1-1: Mechanical components
Table 1-1: Mechanical Components Spare Parts List
Item Description Part Number Spare Part Number
1 Access panel (top cover) 218377-001 228523-001
2 Front bezel 218381-001 228512-001
3 Tape drive blank 218512-001 228498-001
4 Hard drive blank 349448-001 122759-001
5 CD blank 229567-001 228500-001
6 Power supply blank 218378-001 228501-001

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
