Removal and Replacement Procedures
2-34 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
Front Fan Bracket
To remove the front fan bracket:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Remove all the hot-plug fans in the bracket. See the “Hot-Plug Fan” section in this
chapter.
5. Press inward on the release levers
.
6. Lift the bracket
.
1
1
2

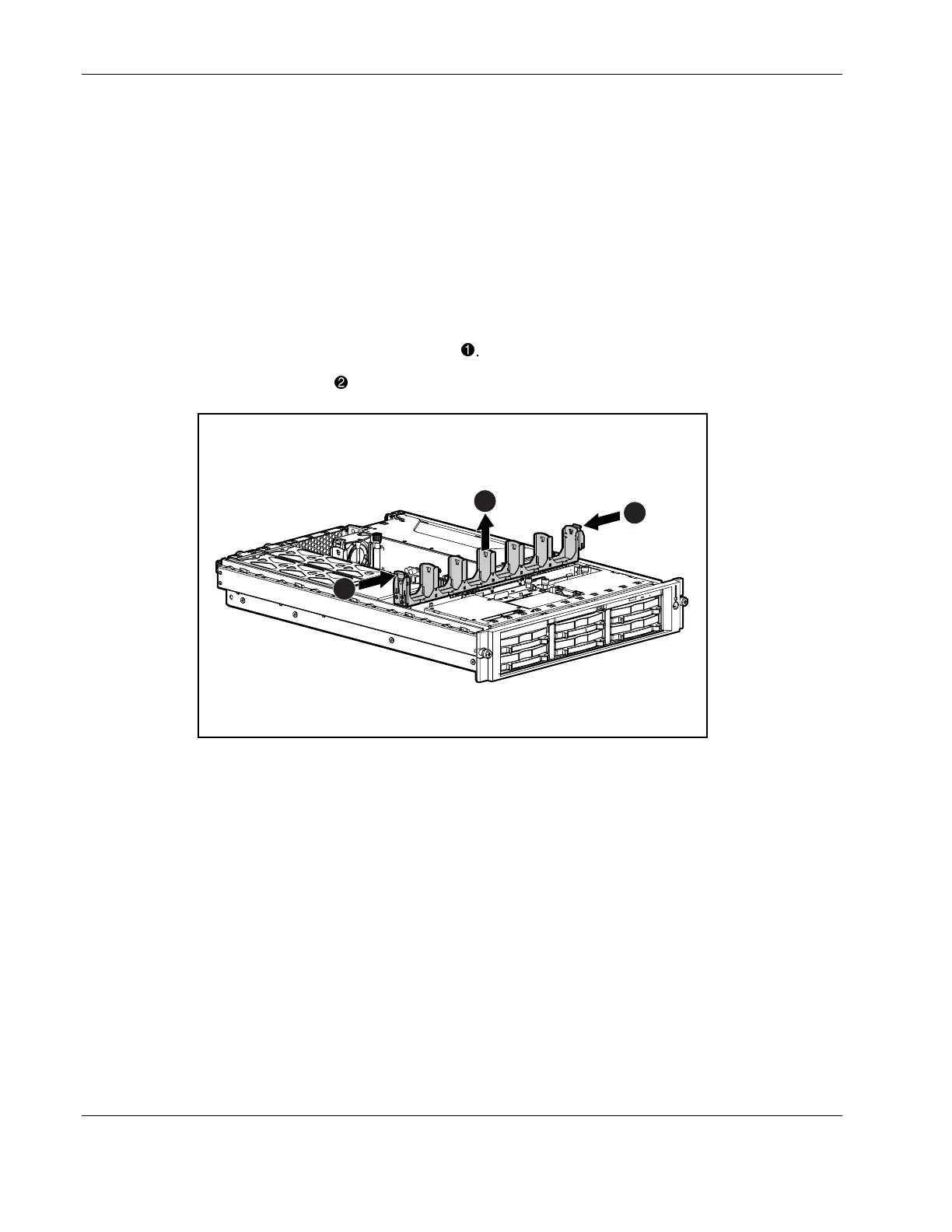

Figure 2-29: Removing the front fan bracket
IMPORTANT: Tighten the system board thumbscrew before installing the front fan bracket. The fan
bracket does not seat securely if the thumbscrew is not fully tightened.
Reverse steps 1 through 6 to replace the front fan bracket.
