Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-41
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
PCI Slot Release Lever (Slots 2 and 3)
To remove a PCI slot release lever:
1. Power down the server. See the Powering Down the Server section in this chapter.
2. Extend or remove the server from the rack. See the Preparation Procedures section in
this chapter.
3. Remove the access panel. See the Access Panel section in this chapter.
4. Remove the expansion board or slot cover from the slot:
a. If an expansion board is installed in the slot, see the Expansion Board (Slots 2 and
3) section in this chapter.
b. If an expansion slot cover is installed in the slot, see the Expansion Slot Cover
(Slots 2 and 3) section in this chapter.
5. Remove the PCI riser cage. See the PCI Riser Cage section in this chapter.
6. Press the slot release lever to unlock it
.
7. Open the slot release lever
.
2
1

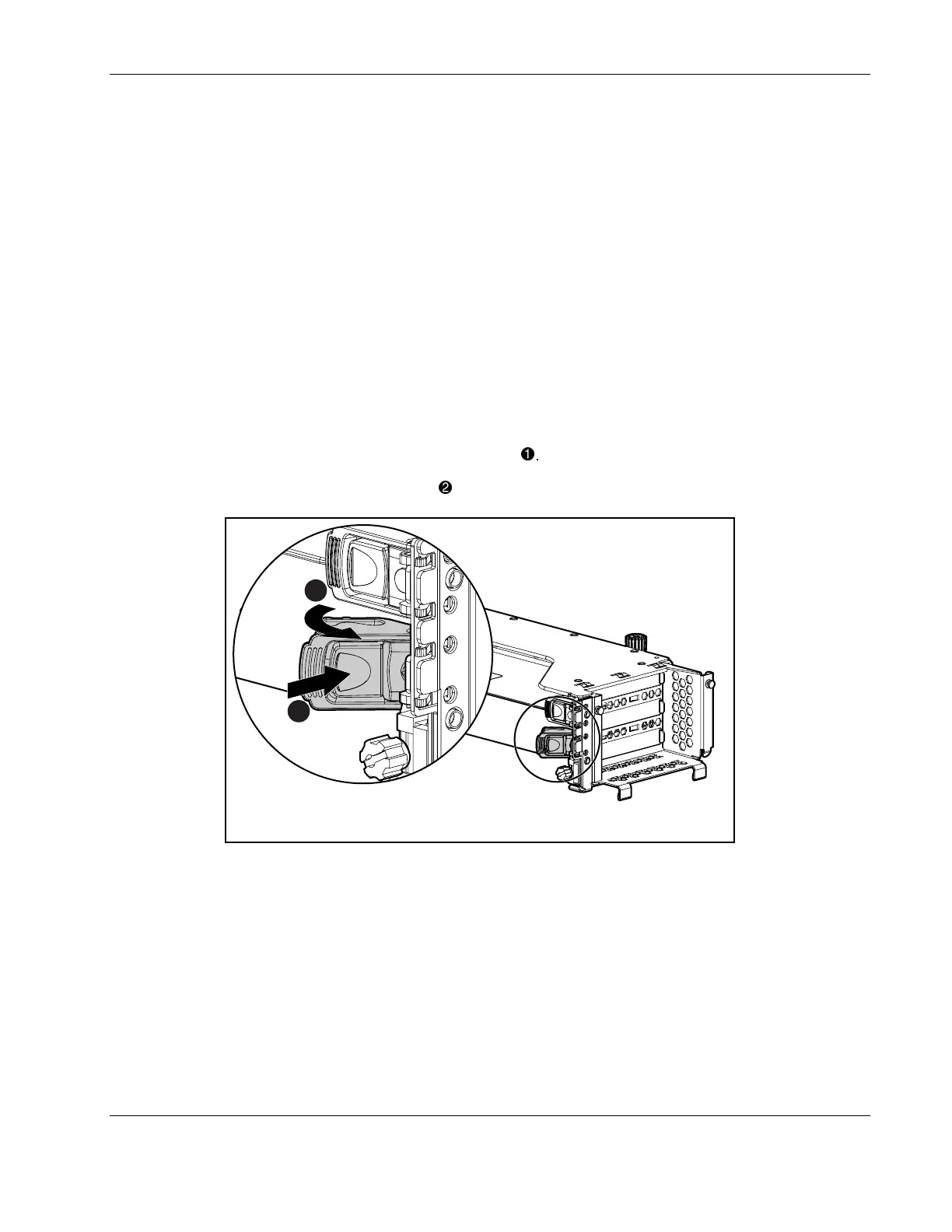

Figure 2-36: Opening the PCI slot release lever
