Connectors, LED Indicators, Switches, and Jumpers
4-12 Compaq ProLiant DL380 Generation 2 Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 12:45 PM
Hot-Plug Power Supply LED
Determine the hot-plug power supply status by observing the color of the power supply LED
located adjacent to the AC inlet (Figure 4-9).

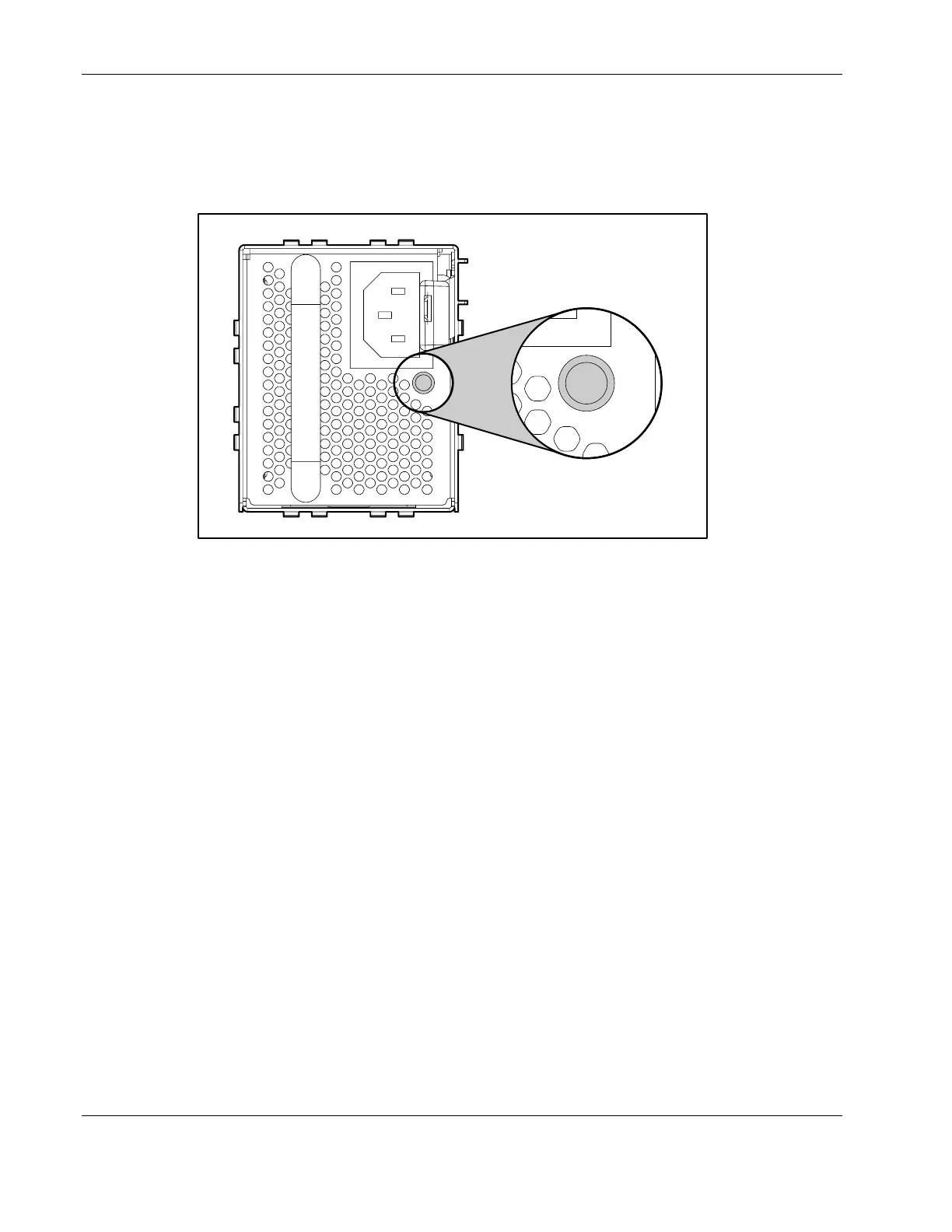

Figure 4-9: Hot-plug power supply LED
When the power supply LED is off, the following conditions may exist:
• The AC power is unavailable.
• The power supply has failed.
• The power supply is in standby mode.
• The power supply has exceeded the maximum current limit.
When the power supply LED is green, the power is turned on and the power supply is
functioning properly.

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
