HP ProLiant DL380 - G2 Server User Manual

Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-61
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
SCSI Cable (Short)
To remove the short SCSI cable:
1. Power down the server. See the “Powering Down the Server” section in this chapter.
2. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
3. Remove the access panel. See the “Access Panel” section in this chapter.
4. Disconnect the SCSI cable from the SCSI backplane  .
5. Disconnect the SCSI cable from the system board
 .
1
2

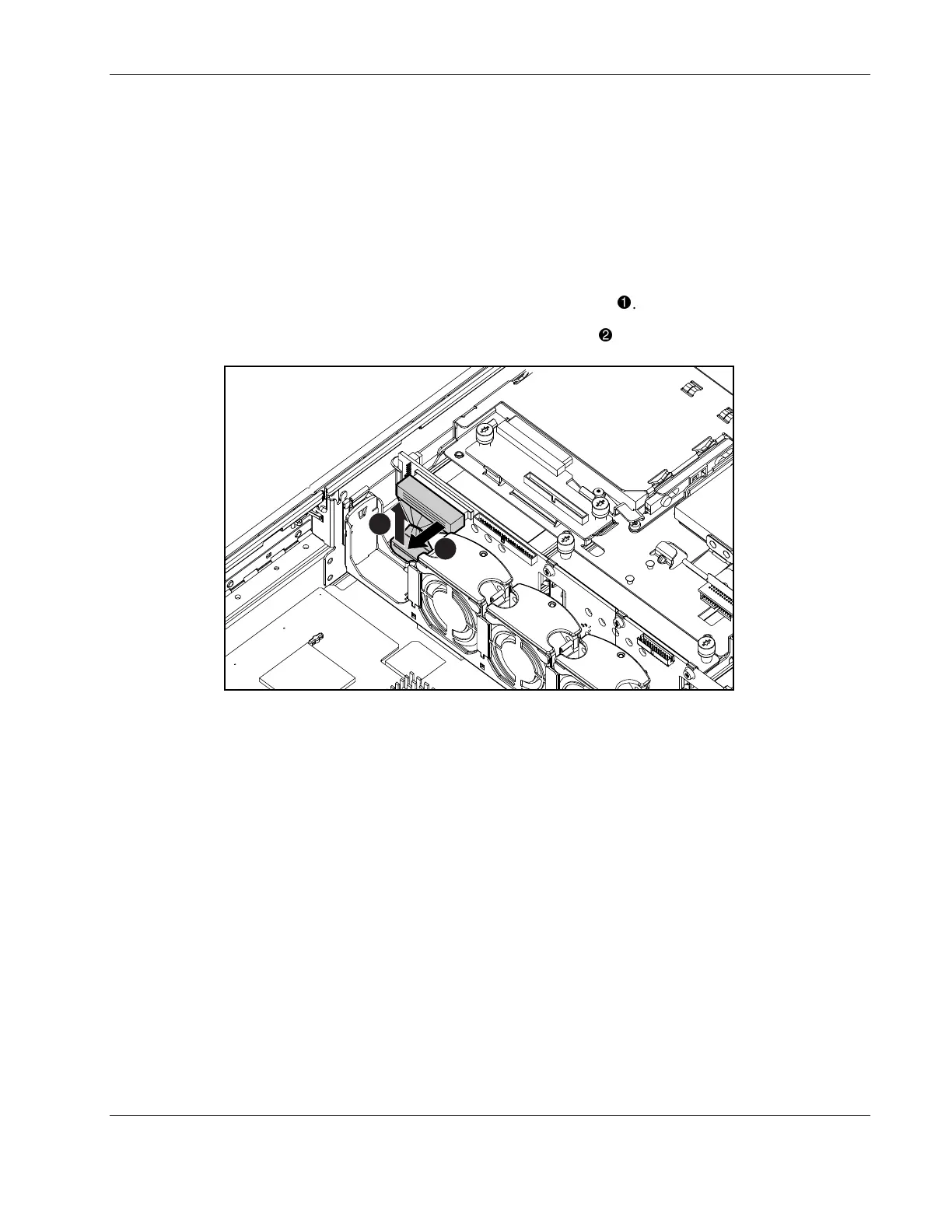

Figure 2-56: Removing the short SCSI cable (PCI riser
cage removed for clarity)
Reverse steps 1 through 5 to replace the short SCSI cable.

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
