Rear Unit Identification LED Switch
The rear unit identification LED switch offers a visual reference for service personnel
(Figure 4-8).

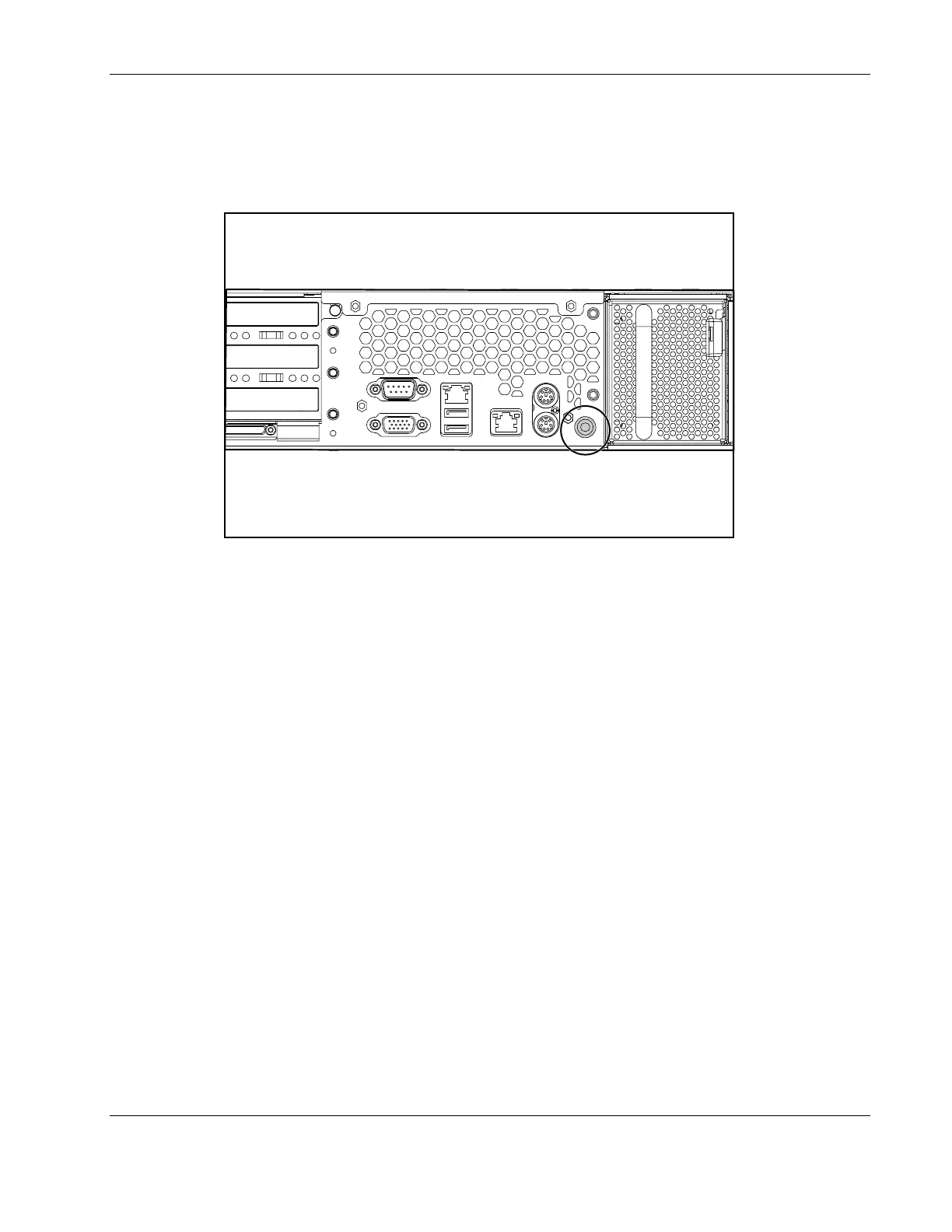

Figure 4-8: Rear unit identification LED switch
The rear unit identification LED switch indicates the following conditions:
• Blue = The switch is activated.
• Off = The switch is deactivated.
