Connectors
The figures and tables on the following pages show connector locations on the rear panel and
the system board of the ProLiant DL380 Generation 2 server.
Rear Panel Connectors
Figure 4-1 and Table 4-1 show the connectors on the rear panel of a ProLiant DL380
Generation 2 server.
1
3 5 8
10
9742 6
3
2

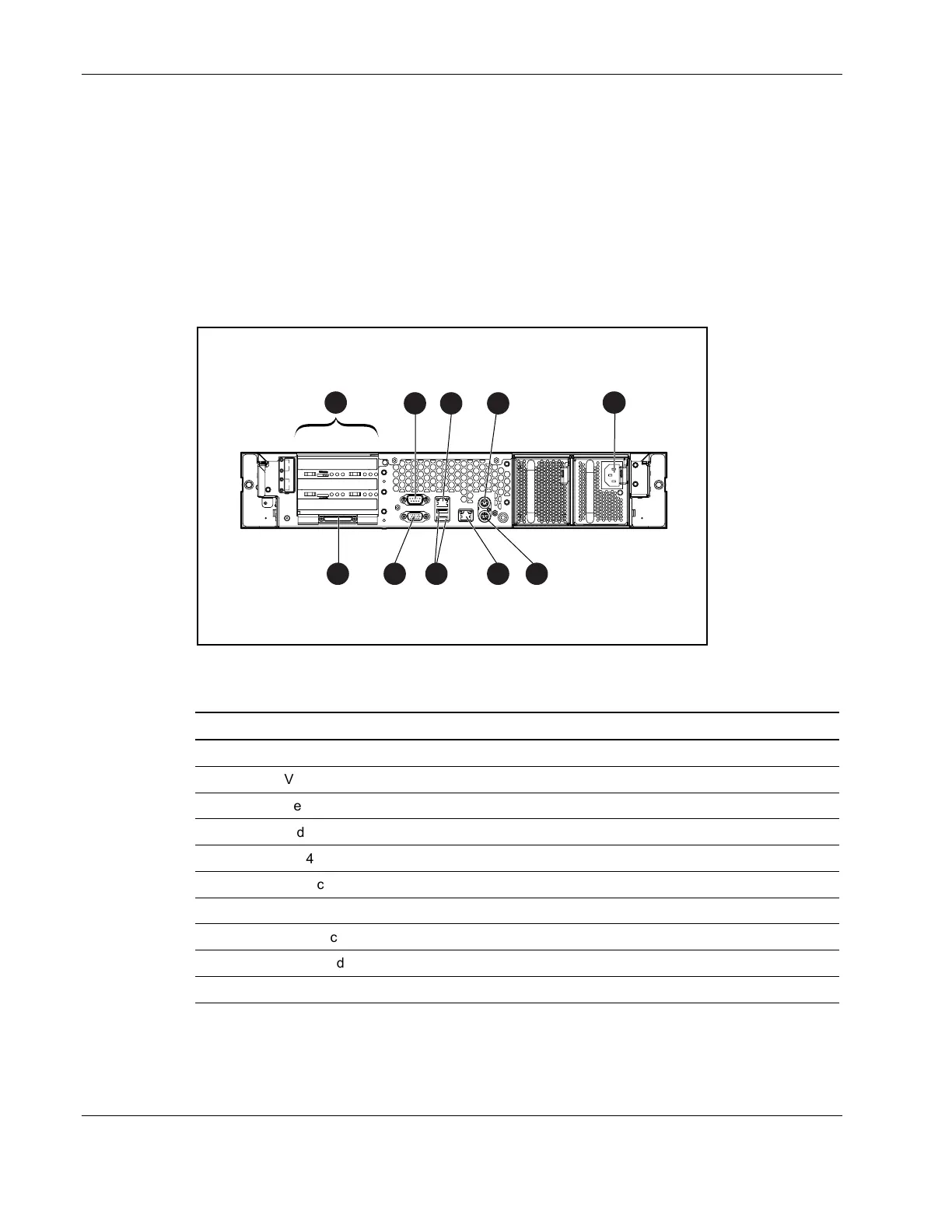

Figure 4-1: Rear panel connectors
Table 4-1: Rear Panel Connectors
Item Description
1 PCI expansion slots
2
VHDCI SCSI connector (SCSI port 1)
3
Serial connector (teal)
4
Video connector (blue)
5
RJ-45 connector for NIC 2
6
USB connectors (2) (black)
7
RJ-45 connector for NIC 1
8
Mouse connector (PS/2) (green)
9
Keyboard connector (PS/2) (purple)
10 Power connector
