Removal and Replacement Procedures
2-30 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
Diskette Drive
To remove a diskette drive:
1. Power down the server. See the Powering Down the Server section in this chapter.
2. Extend or remove the server from the rack. See the Preparation Procedures section in
this chapter.
3. Remove the access panel. See the Access Panel section in this chapter.
4. Disconnect the diskette interface cable from the SCSI backplane
.
5. Loosen the diskette drive thumbscrew
.
6. Slide the diskette drive toward the SCSI backplane and lift
.
1
2
3

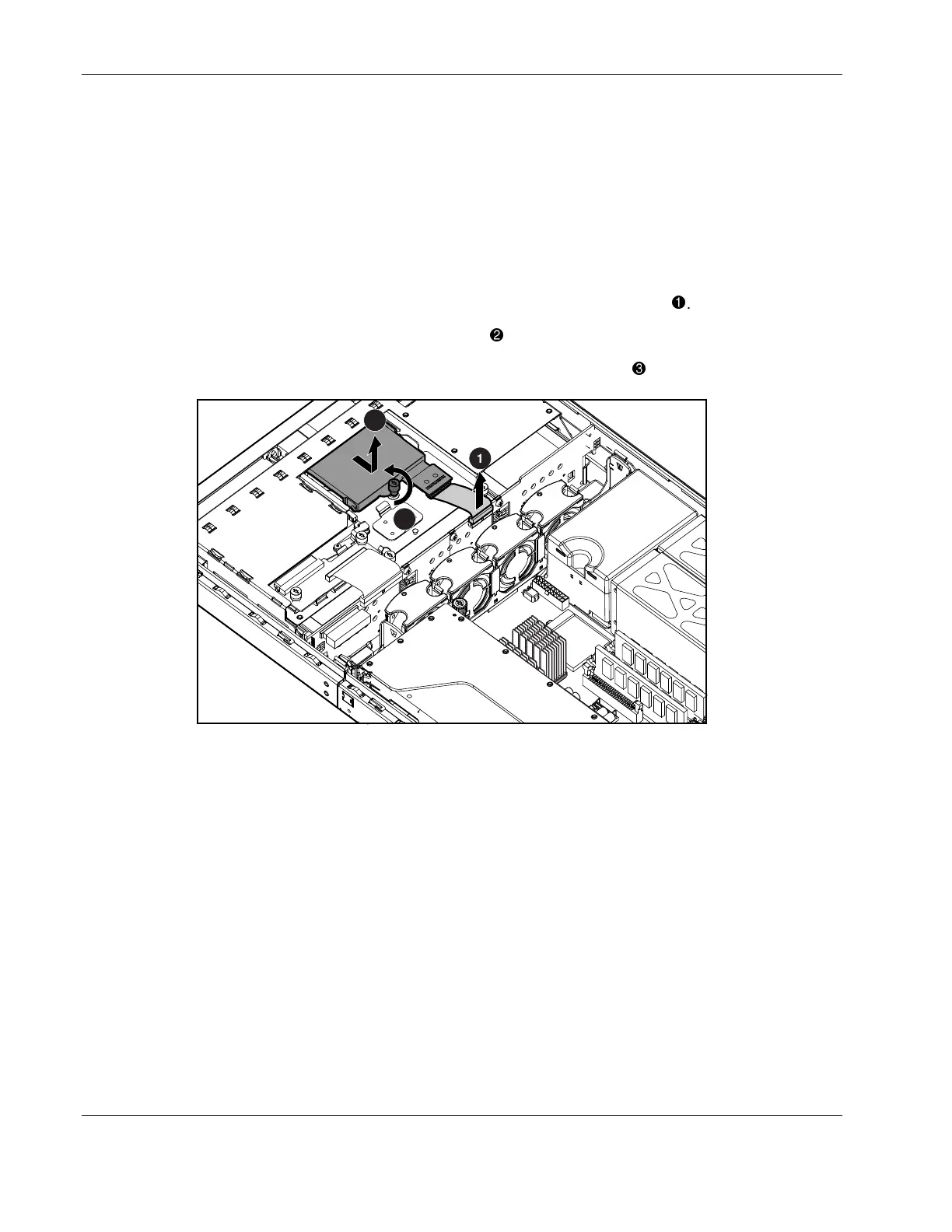

Figure 2-25: Removing the diskette drive
Reverse steps 1 through 6 to replace the diskette drive.
