Connectors, LED Indicators, Switches, and Jumpers
Compaq ProLiant DL380 Generation 2 Maintenance and Service Guide 4-3
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 12:45 PM
System Board Connectors
Figure 4-2 and Table 4-2 show the connectors on the system board.
6
5
7
8
9
10
11
12
41 2 3
20
1819 1314
17
16 15

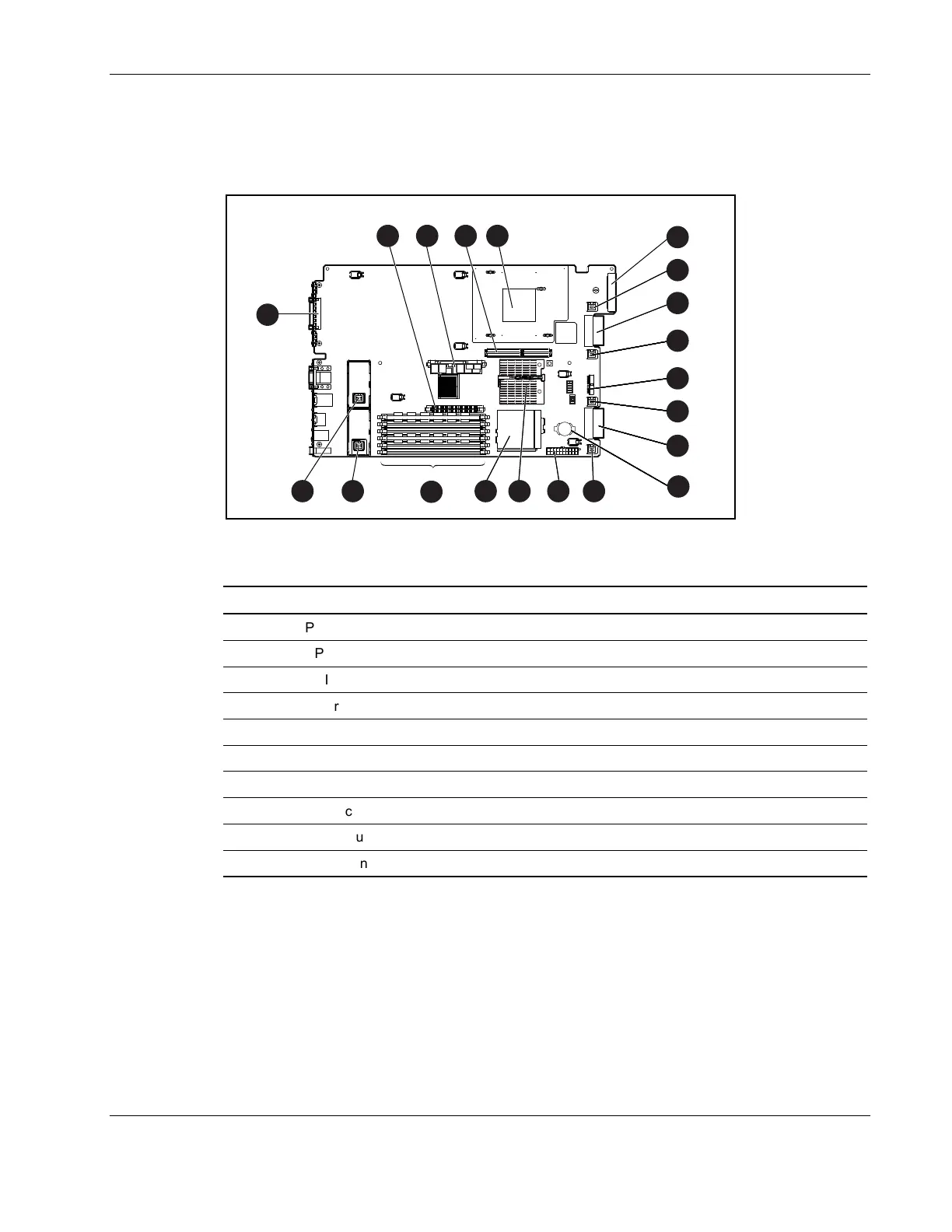

Figure 4-2: System board connectors
Table 4-2: System Board Connectors
Item Description Item Description
1  PPM slot 2 11 Diskette drive system connector
2  PPM slot 1 12 Battery
3  PCI riser cage connector 13 Fan 6 connector
4  Smart Array 5i Controller 14 System power connector
5  SCSI port 2 (internal) 15 Processor socket 1
6  Fan 3 connector 16 Processor socket 2
7 LED/CD-ROM drive system connector 17 DIMM slots (1A-6C)
8  Fan 4 connector 18 Fan 2 connector
9  Power supply signal connector 19 Fan 1 connector
10  Fan 5 connector 20 VHDCI SCSI connector (port 1)

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
