Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-15
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
Power Supply Blank
To remove the power supply blank:
1. Unlock the hinge on the cable arm and swing the arm away from the power supply area.
2. Press the locking latch
.
3. Pull the blank out of the bay
.
1
2

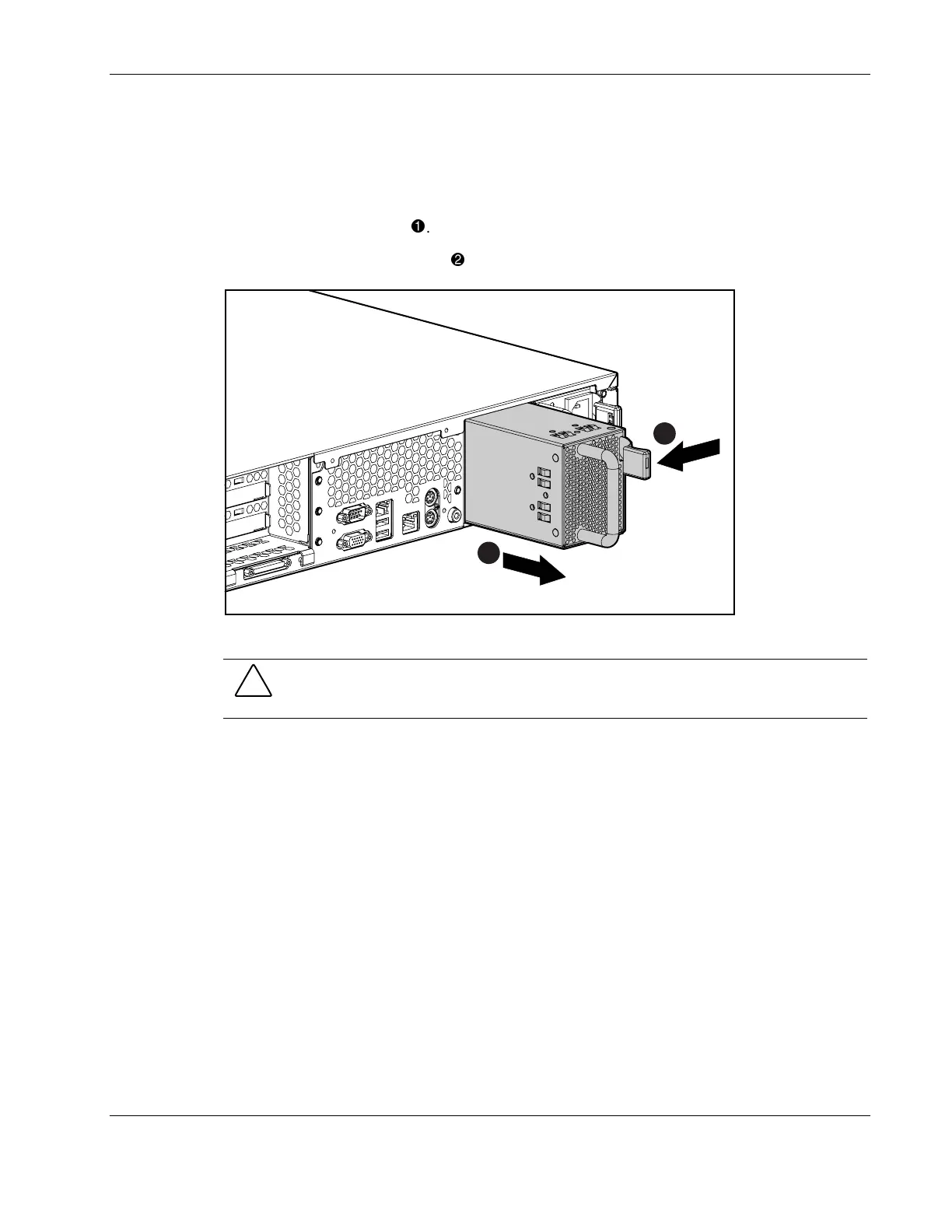

Figure 2-10: Removing the power supply blank
CAUTION: Always populate power supply bays with either a power supply or blank.
Operating the server without installing a power supply or blank results in improper airflow and
improper cooling that can lead to thermal damage.
To replace the power supply blank:
1. Slide the blank into the bay until it locks into place.
2. Swing the cable management arm into place and lock it.
