Connectors, LED Indicators, Switches, and Jumpers
Compaq ProLiant DL380 Generation 2 Maintenance and Service Guide 4-13
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 12:45 PM
Hot-Plug Fan LED

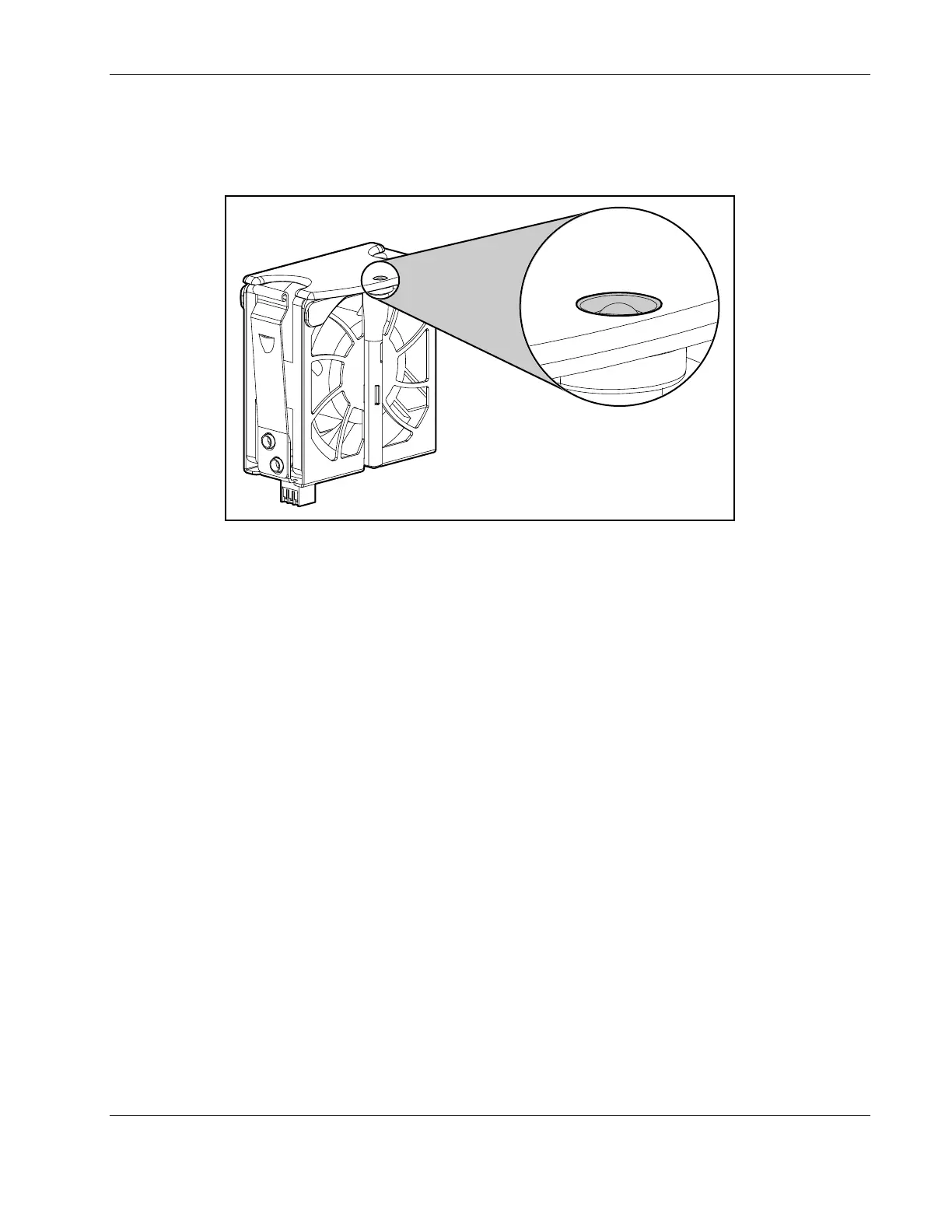

Each of the hot-plug fans contains a dual-color LED (Figure 4-10).
Figure 4-10: Hot-plug fan LED
The hot-plug fan LED indicates the following conditions:
• Green = The fan is operating normally.
• Amber = The fan has failed.
• Off = The fan is not powered.
