Connectors, LED Indicators, Switches, and Jumpers
4-18 Compaq ProLiant DL380 Generation 2 Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 12:45 PM
System Switches
With system switches, you can enable or disable certain settings or perform advanced
diagnostic procedures. The following sections explain the functions of each switch.
Figure 4-13 and Table 4-10 identify switch locations on the system board.
2
1
3
4

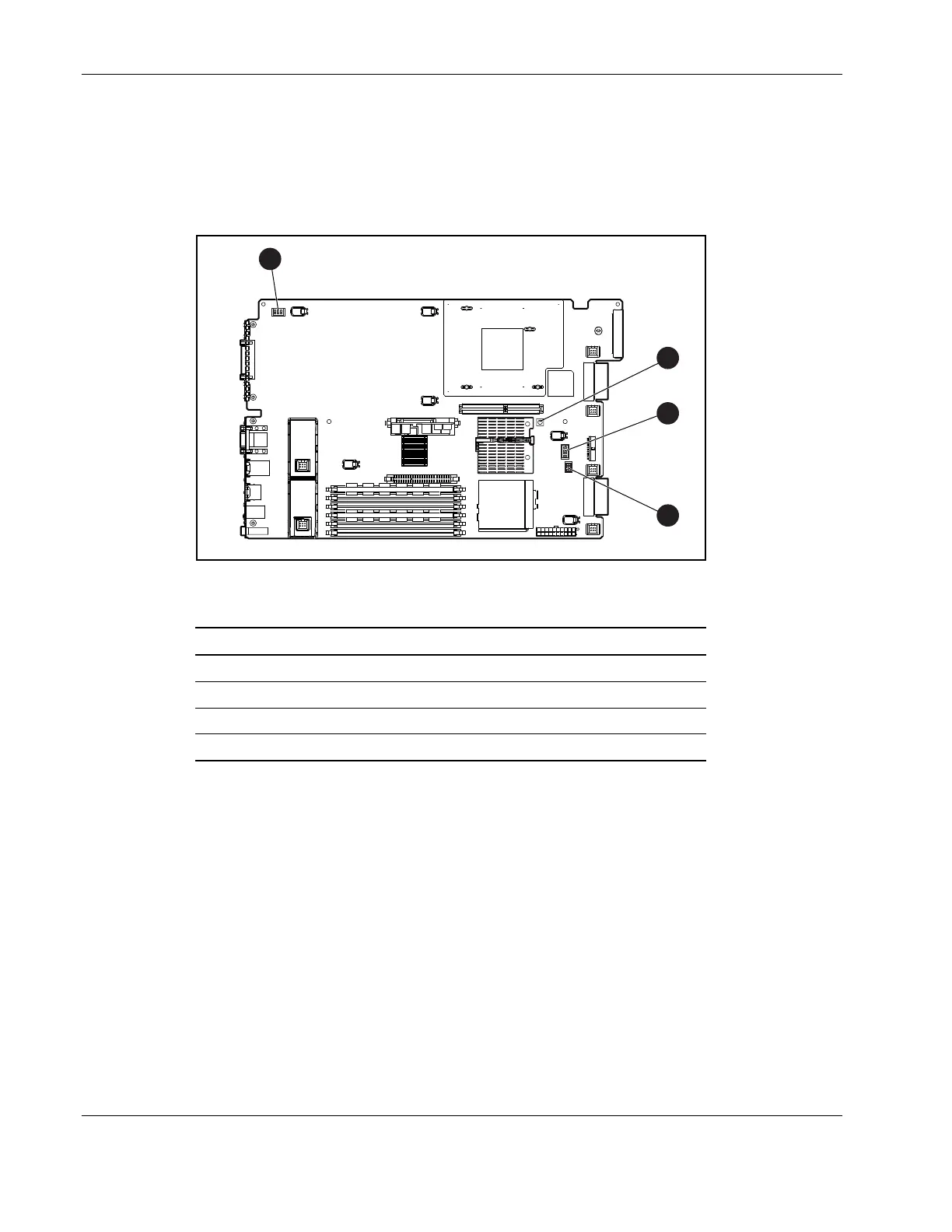

Figure 4-13: System board switches
Table 4-10: System Board Switches
Item Description
1 SCSI interlock disable
2 Non-maskable interrupt (NMI)
3 System maintenance
4 Chassis ID
