Air Baffle
To remove the air baffle:
1. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
2. Remove the access panel. See the “Access Panel” section in this chapter.
3. Lift the air baffle.

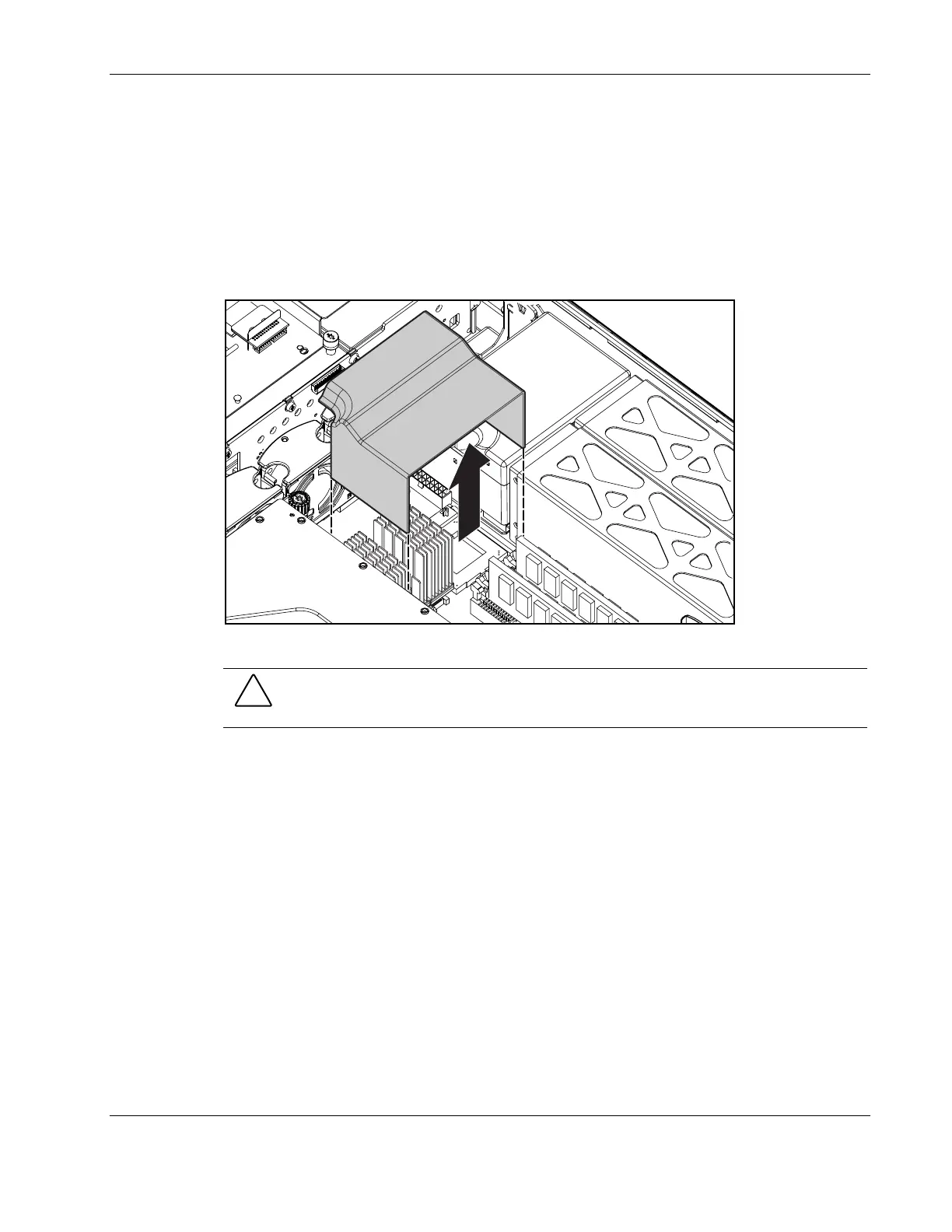

Figure 2-14: Removing the air baffle
CAUTION:
A
lways install the air baffle after completing hardware installation or maintenance
procedures. Operating the server without installing the air baffle results in improper airflow
and improper cooling that can lead to thermal damage.
Reverse steps 1 through 3 to replace the air baffle.

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
