Removal and Replacement Procedures
2-22 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
1
2

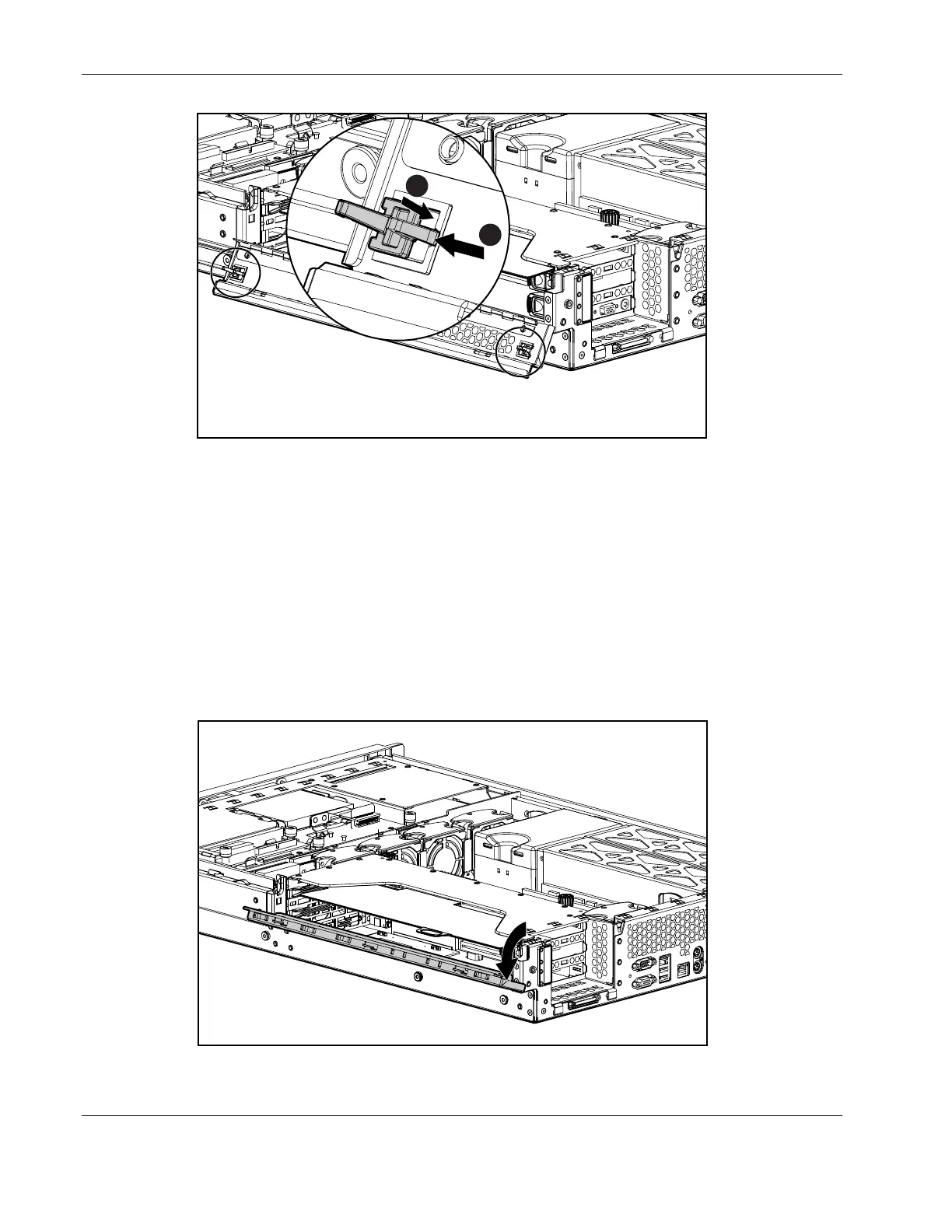

Figure 2-17: Removing the PCI riser cage door latch
Reverse steps 1 through 5 to replace the PCI riser cage door latch.
Expansion Board (Slots 2 and 3)
To remove an expansion board from slots 2 and 3:
1. Extend or remove the server from the rack. See the “Preparation Procedures” section in
this chapter.
2. Remove the access panel. See the “Access Panel” section in this chapter.
3. Open the PCI riser cage door.
Figure 2-18: Opening the PCI riser cage door

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
