Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-27
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
4. Press the PCI slot release lever to unlock it  .
5. Open the PCI slot release lever
 .
6. Slide the expansion slot cover out of the slot
 .
2
1
3

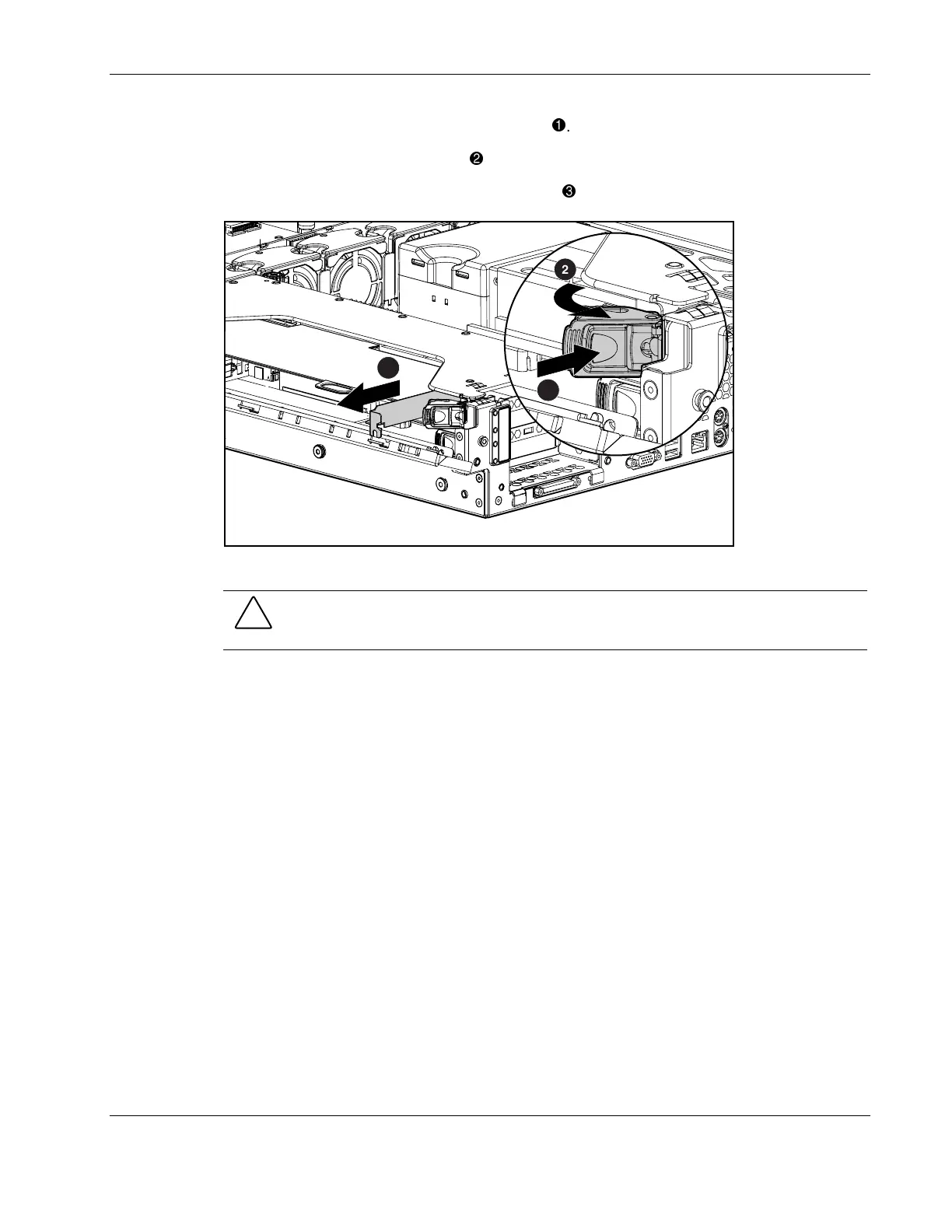

Figure 2-22: Removing the expansion slot cover from slot 3
CAUTION: Always install either an expansion board or an expansion slot cover. Operating
the server without an expansion board or slot cover results in improper airflow and cooling
that can lead to thermal damage.
Reverse steps 1 through 6 to replace the expansion slot cover.

HP ProLiant DL380 - G2 Server Specifications

General

Form Factor	2U Rackmount
CPU	Intel Pentium III or Xeon
Storage	Up to 6 hot-plug SCSI drives
Network Controller	Integrated 10/100TX Ethernet
Power Supply	Dual redundant hot-plug
Expansion Slots	6 PCI (4x 64-bit, 2x 32-bit)
