Removal and Replacement Procedures
Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide 2-25
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM
7. Press the PCI slot release lever to unlock it
.
8. Open the PCI slot release lever
.
9. Remove the expansion board from the slot:
a. If the expansion board is installed in slot 2, grasp the PCI expansion board
ejector/divider
and pull to remove the expansion board
.
b. If the expansion board is installed in slot 3, grasp the expansion board and pull to
remove it from the slot.
3
4
2
1

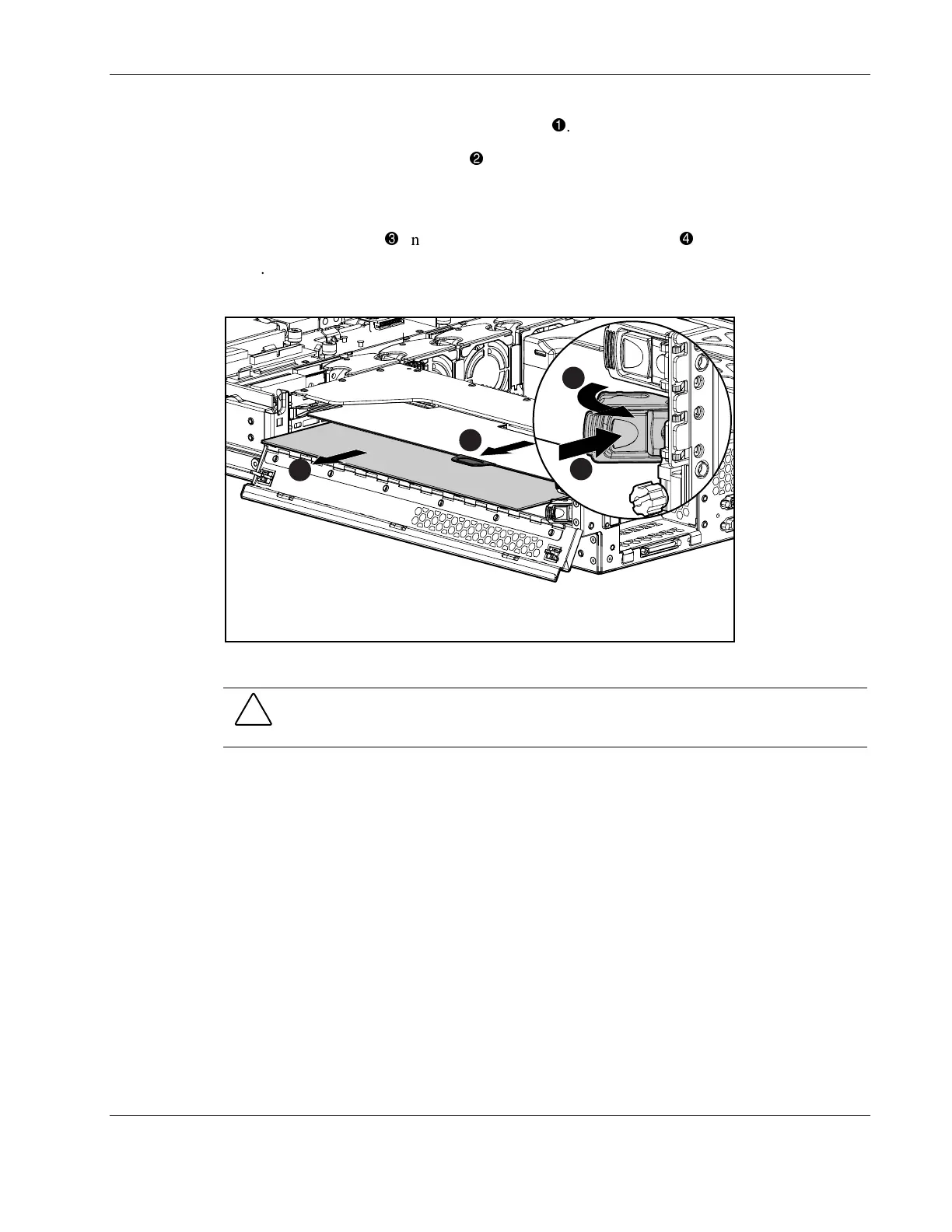

Figure 2-20: Removing an expansion board from slots 2 and 3
CAUTION: Always install either an expansion board or an expansion slot cover. Operating
the server without an expansion board or slot cover results in improper airflow and cooling
that can lead to thermal damage.
Reverse steps 1 through 9 to replace the expansion board.
