Removal and Replacement Procedures
2-58 Compaq ProLiant DL380 Generation2 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Magna Part Number: 203840-003 Last Saved On: 1/28/02 1:12 PM

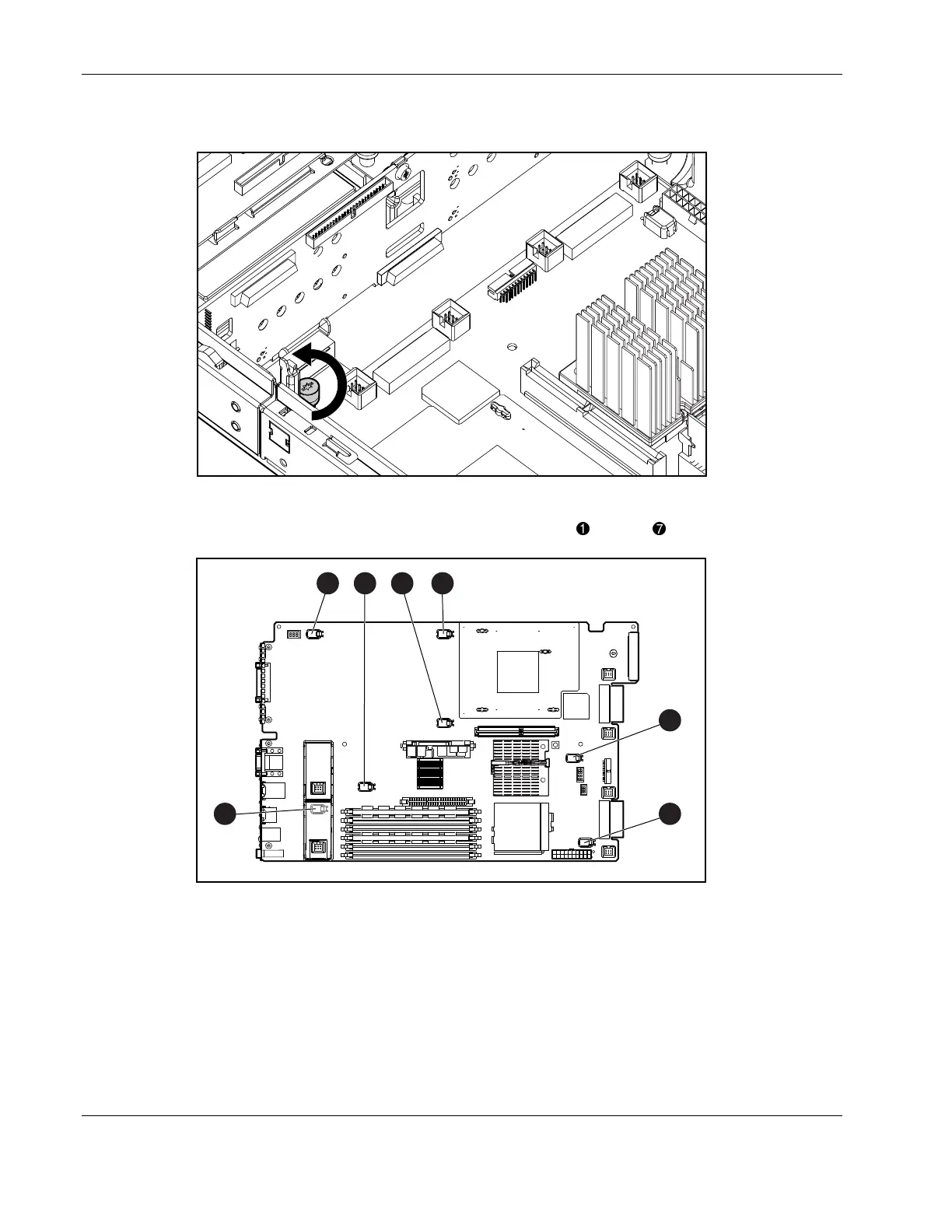

14. Loosen the system board thumbscrew.
Figure 2-52: Loosening the system board thumbscrew
15. Identify the alignment keys and keyhole locations,
through
, on the system board.
41 2 3
67
5
Figure 2-53: Identifying the alignment keys and keyhole
locations
