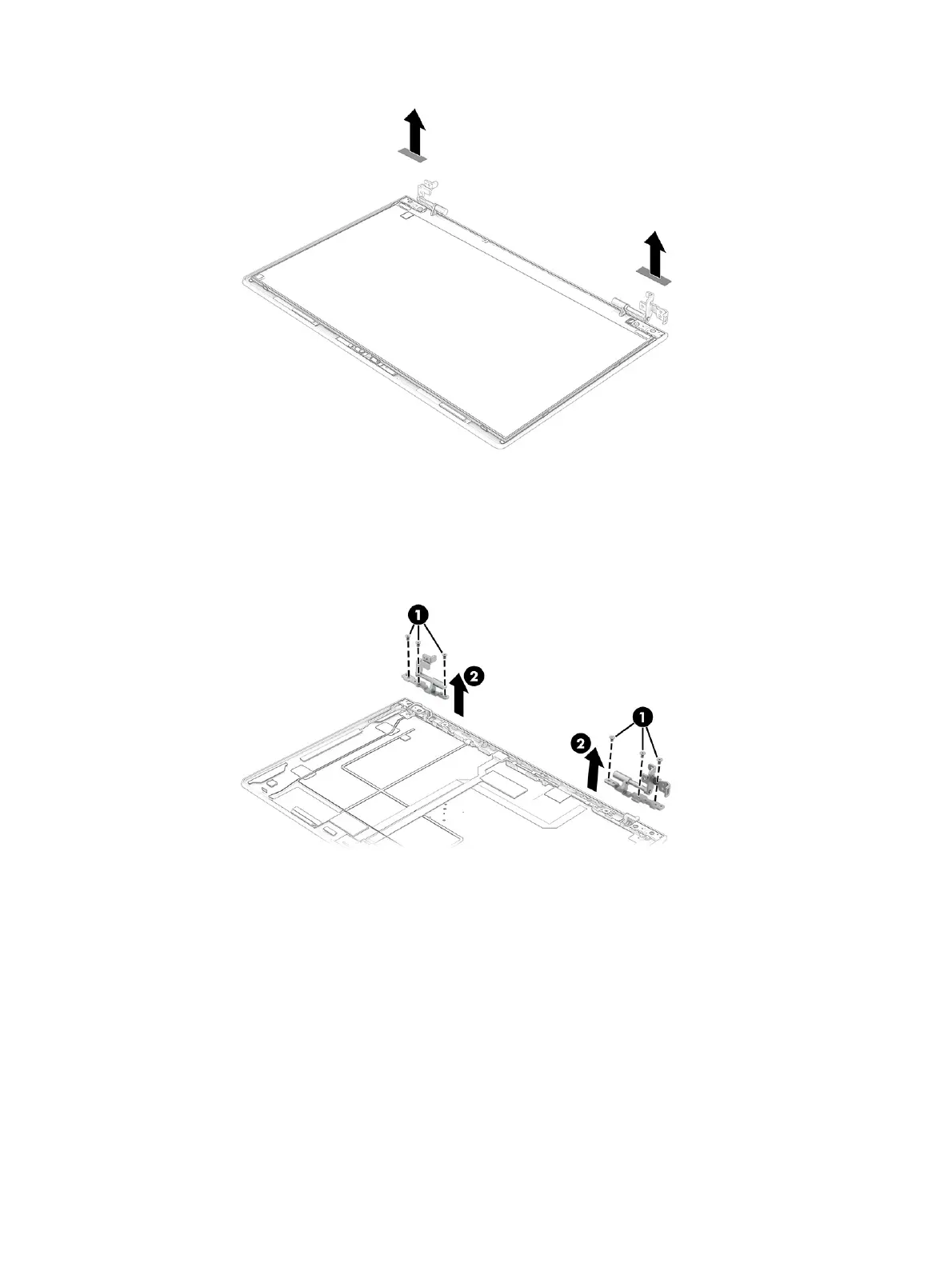

b. Remove the three Phillips M2.0 × 2.0 screws (1) that secure each hinge to the display back
cover.
c. Remove the display hinges (2).
The display hinges are available using spare part number N56095-001.
10. To remove the camera module:
a. Disconnect the cable from the ZIF connector on the camera module (1).
b. Use a tool to release the module (2). The module is secured with adhesive.
c. Remove the module (3).
Camera modules are available as spare part number N06895-001 for HD cameras and
N56099-001 for 5 MP + IR cameras. The display panel cable is available using spare part
number N56199-001.
