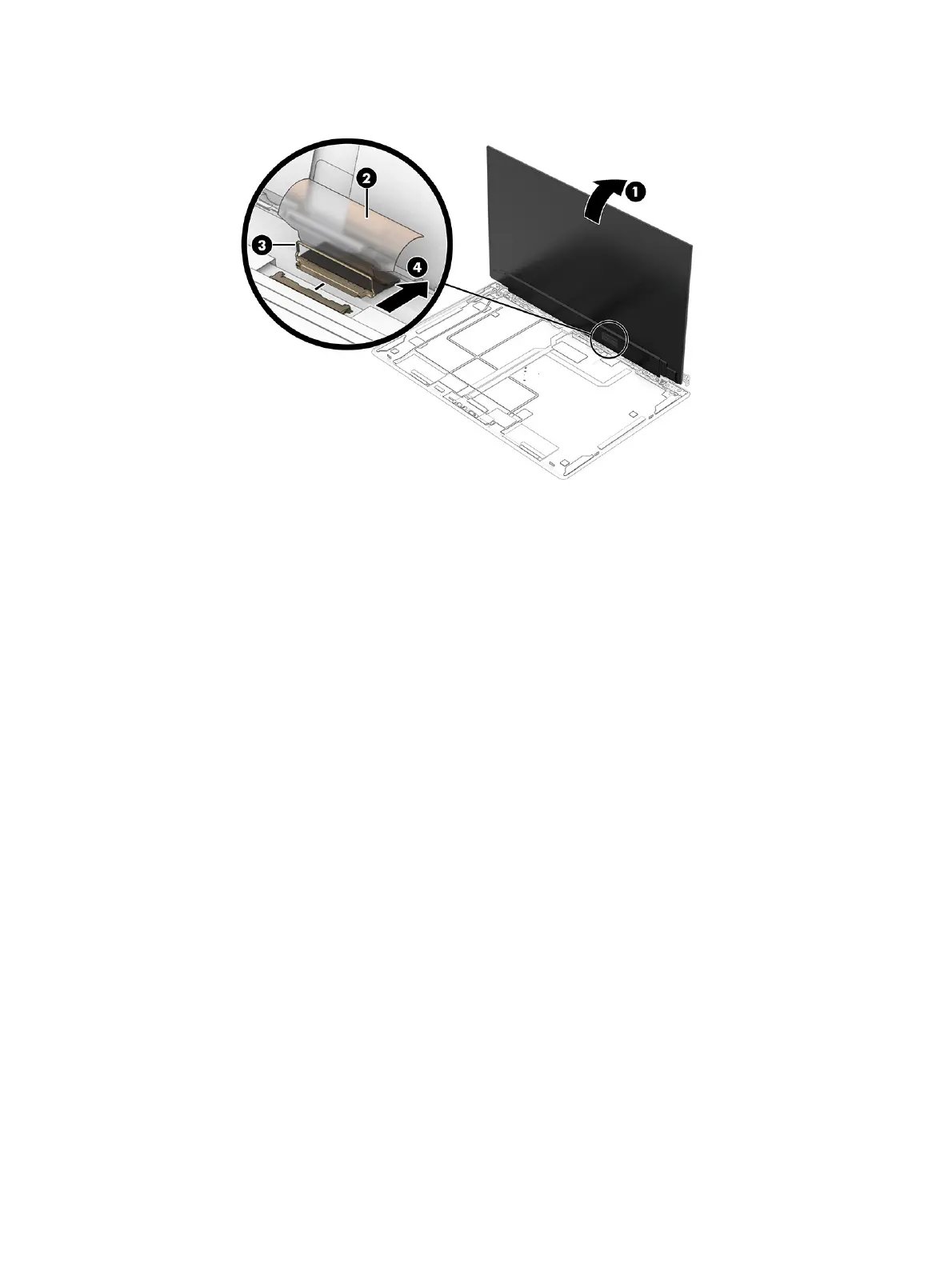

f. Disconnect the display panel cable (4) from the display panel.
Panel adhesive is available in the LCD Support Kit as spare part number M27375-001.
Display panels are available as the following spare part numbers:
● N52398-001—QHD, 300 nit panel
● N60316-001—FHD, 400 nit panel, lock
● N52397-001—FHD, 400 nit panel
● N52395-001—FHD, 250 nit panel
● N06892-001—FHD, 250 nit panel, touch screen
9. To remove the hinges from the display back cover:
a. Remove the hinge covers.
The display hinge covers are included in the Plastic Kit, spare part number N06911-001.
Display assembly
63
