● M21863-001—Models with an HD camera
● M21865-001—Models without a camera

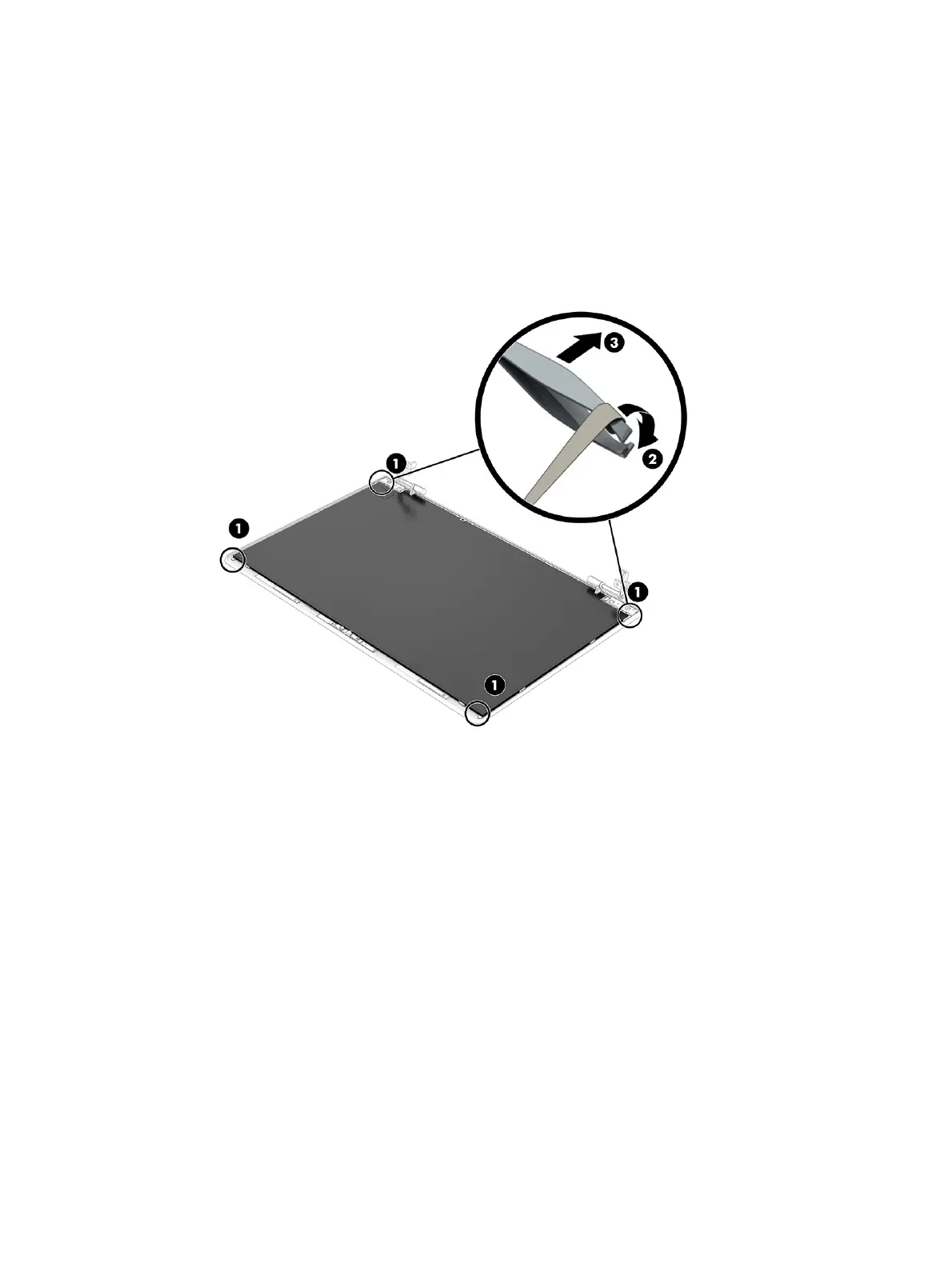

8. To remove the display panel:
a. Use tweezers to grasp the end of the retention tape that is installed under all four sides (1) of
the panel.
b. While turning the tweezers (2), wrap the tape around the tweezers as you continue to pull the
tape (3) out from behind the display panel.
c. Swing the display panel (1) away from the display back cover until it rests face down in front of
the back cover.
d. Release the adhesive support strip (2) that secures the display panel cable to the display
panel.
e. Release the retention bar (3) that secures the display panel cable to the display panel.
