358

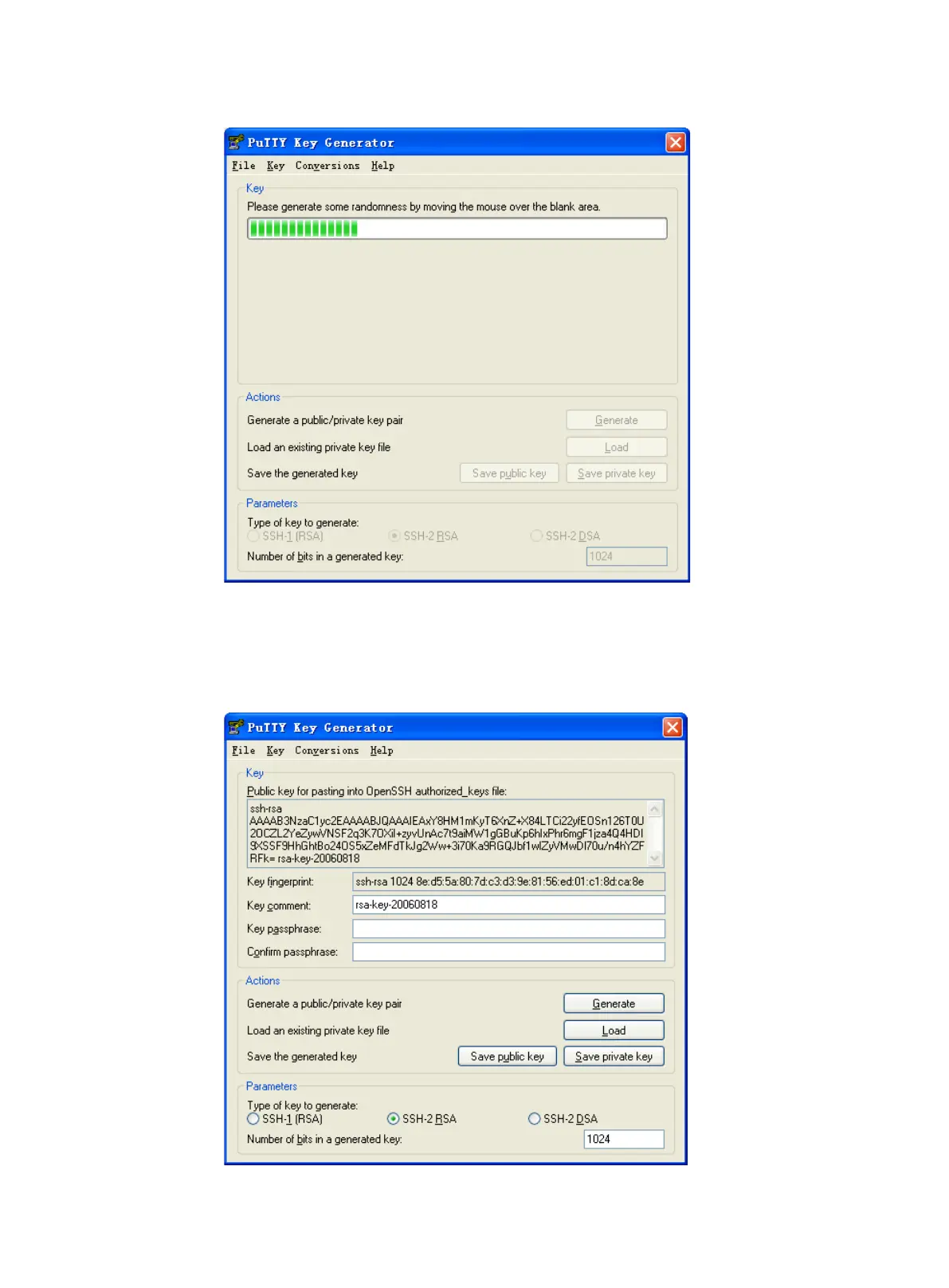

Figure 99 Generating process

c. After the key pair is generated, click Save public key to save the public key.

A file saving window appears.

d. Enter a file name (key.pub in this example), and click Save.

Figure 100 Saving a key pair on the client
