360
# Import the client's public key from file key.pub and name it switchkey.
[Switch] public-key peer switchkey import sshkey key.pub
# Create an SSH user client002. Specify the authentication method as publickey for the user.
Assign the public key switchkey to the user.
[Switch] ssh user client002 service-type stelnet authentication-type publickey assign
publickey switchkey
# Create a local device management user client002. Specify the service type as ssh for the
user. Assign the user role network-admin to the user.
[Switch] local-user client002 class manage
[Switch-luser-manage-client002] service-type ssh
[Switch-luser-manage-client002] authorization-attribute user-role network-admin
[Switch-luser-manage-client002] quit
3. Specify the private key file and establish a connection to the Stelnet server:
a. Launch PuTTY.exe on the Stelnet client to enter the interface shown in Figure 101.
b. In the Host Name (or IP address) field, enter the IP address 192.168.1.40 of the Stelnet
server.

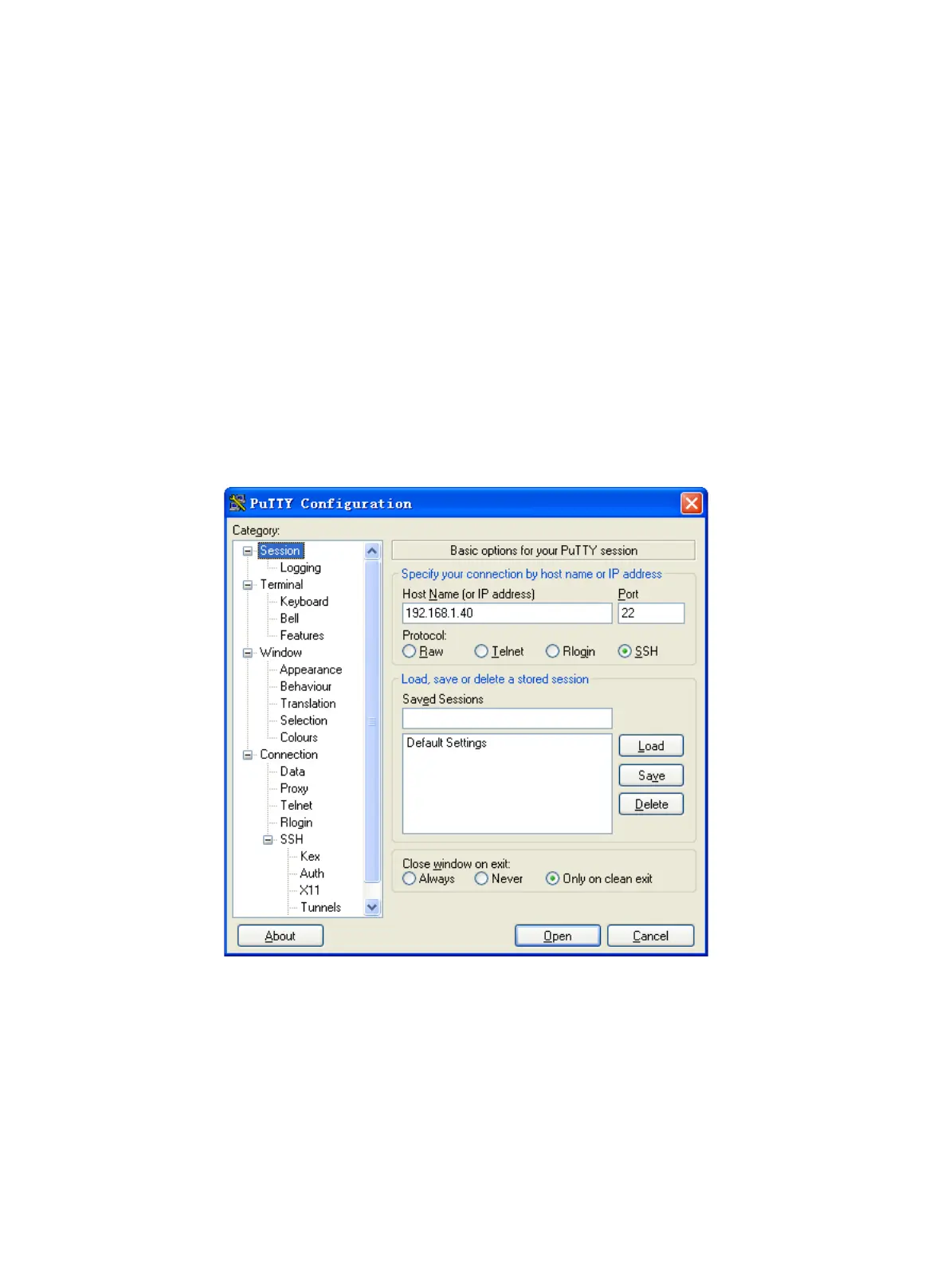

Figure 101 Specifying the host name (or IP address)
c. Select Connection > SSH from the navigation tree.
The window shown in Figure 102 appears.
d. Specify the Preferred SSH protocol version as 2 in the Protocol options area.
