Item Description Status
3 NIC status LED
1
• Solid green = Link to network
• Flashing green (1 Hz/cycle per sec) = Network active
• O = No network activity
4 UID button/LED
1
• Solid blue = Activated
• Flashing blue:
◦ 1 Hz/cycle per sec = Remote management or firmware
upgrade in progress
◦ 4 Hz/cycle per sec = iLO manual reboot sequence
initiated
◦ 8 Hz/cycle per sec = iLO manual reboot sequence in
progress
◦ O = Deactivated
1
When all four LEDs described in this table flash simultaneously, a power fault has occurred.
2
Facility power is not present, the power cord is not attached, no power supplies are installed, power supply failure has occurred, or the
power button cable is disconnected.
3
If the health LED indicates a degraded or critical state, review the system IML or use iLO to review the system health status.

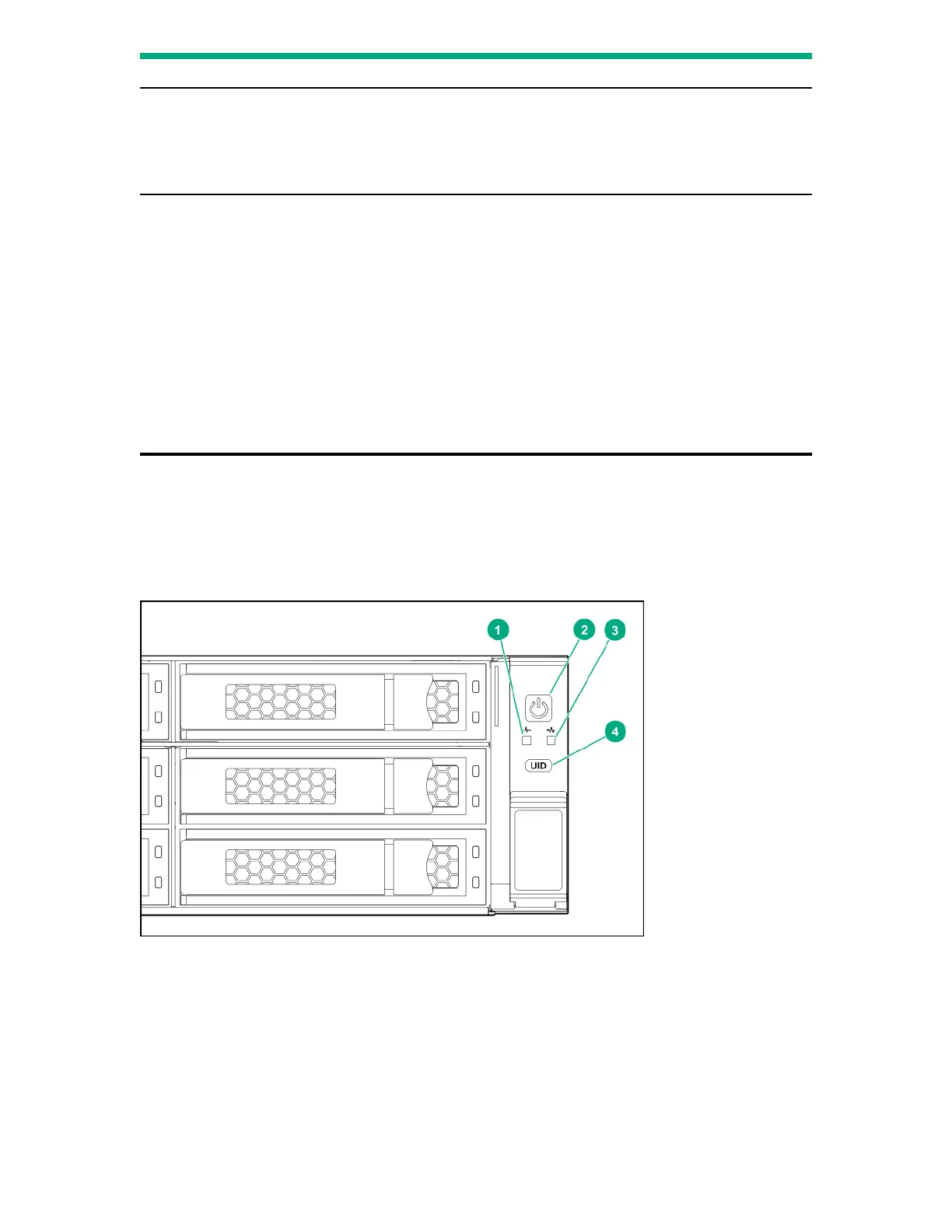

12 LFF front panel LEDs and button
Component identification
