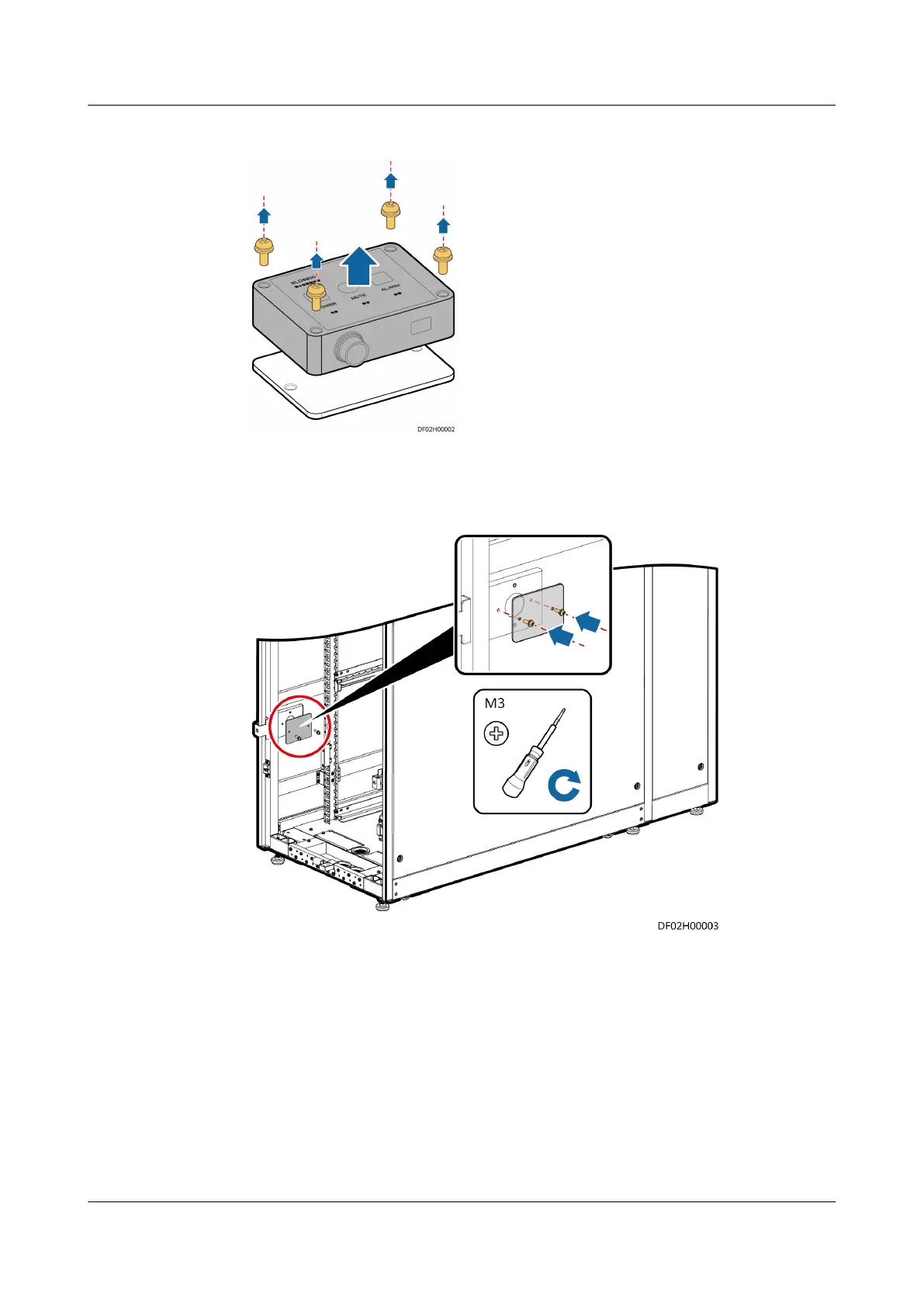

Figure 3-108 Removing the cover from the water detector
2. Use two M3 screws to secure the bottom plate of the water detector to the
bottom of the equipment, as shown in Figure 3-109.
Figure 3-109 Installing the water detector bottom plate
3. Reinstall the water detector cover by referring to Step 1.
Step 2 Connect the water detection cable to the conversion cable, as shown in Figure
3-110.
