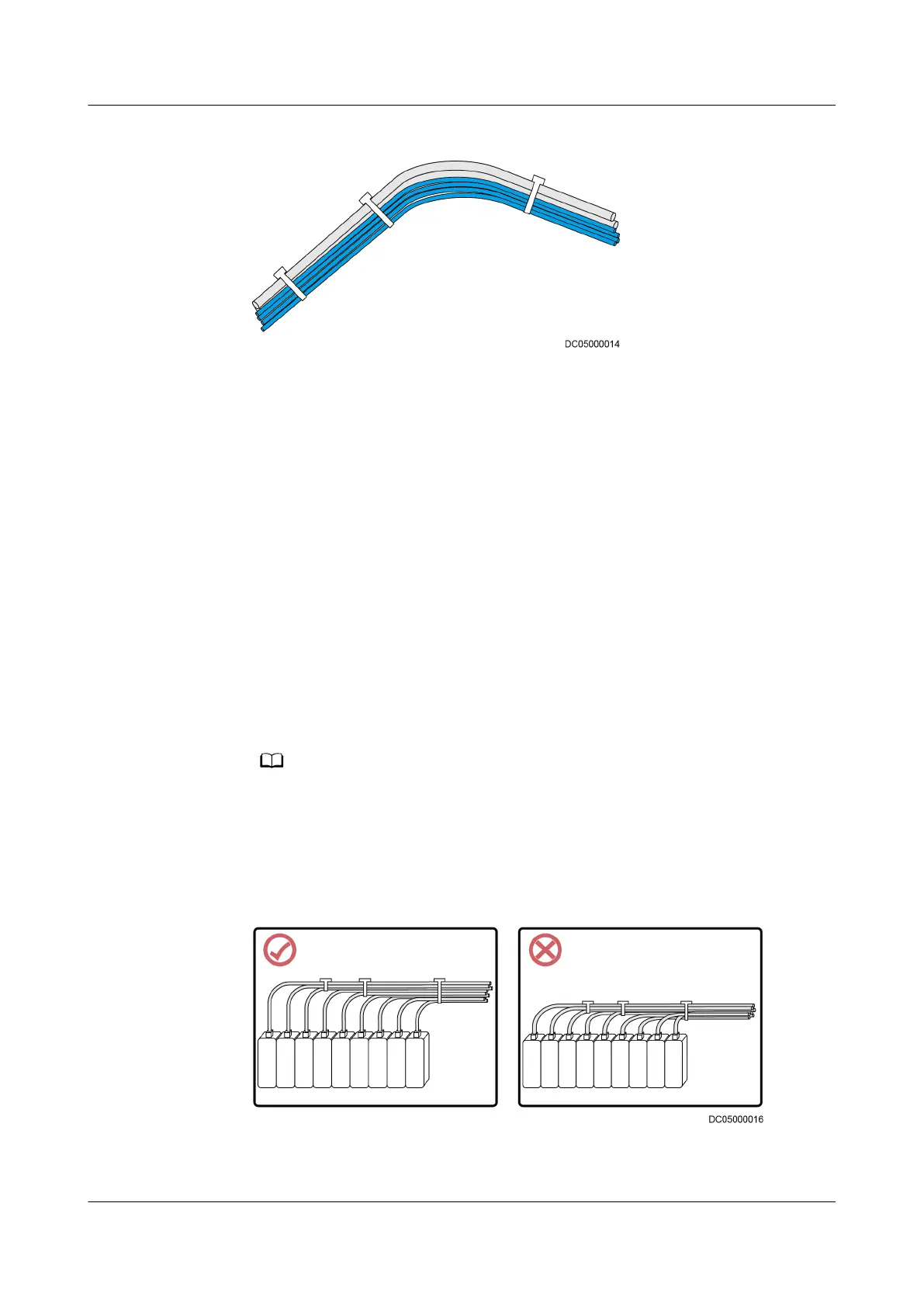

Figure 4-3 Binding cables in dierent colors
Cable Spacing Requirements
Comply with the following requirements if possible to lay out dierent types of
cables:
1. Separate AC and DC power cables from diverse non-shielded signal cables.
Keep the cable spacing greater than 100 mm or use grounded metal for
isolation purposes. Do not bind the cables together. Preferentially route the
cables along
dierent sides of cabinets.
2. You are advised to route network cables and optical cables separately.
Safety and Reliability Requirements for Routing and Binding Cables
1. Unless otherwise specied in a design le, ensure that the bend radius (R) of
a cable meets the following requirements:
– Common cable: R ≥ 3d
– Optical cable: R ≥ 40 mm
R indicates the bend radius, and d indicates the cable diameter.
2. Reserve slack at cable connection positions to facilitate connection and
disconnection and to prevent stress. Do not leave the cables tight and prevent
connector misalignment, as shown in Figure 4-4.
Figure 4-4 Cable connection positions
3. Before installing a semi-exible cable, use a dedicated tool to curve the cable.
Do not curve the cable while holding the cable connector by hand.
FusionModule2000-S Smart Modular Data Center
User Manual 4 System Cabling
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 121
